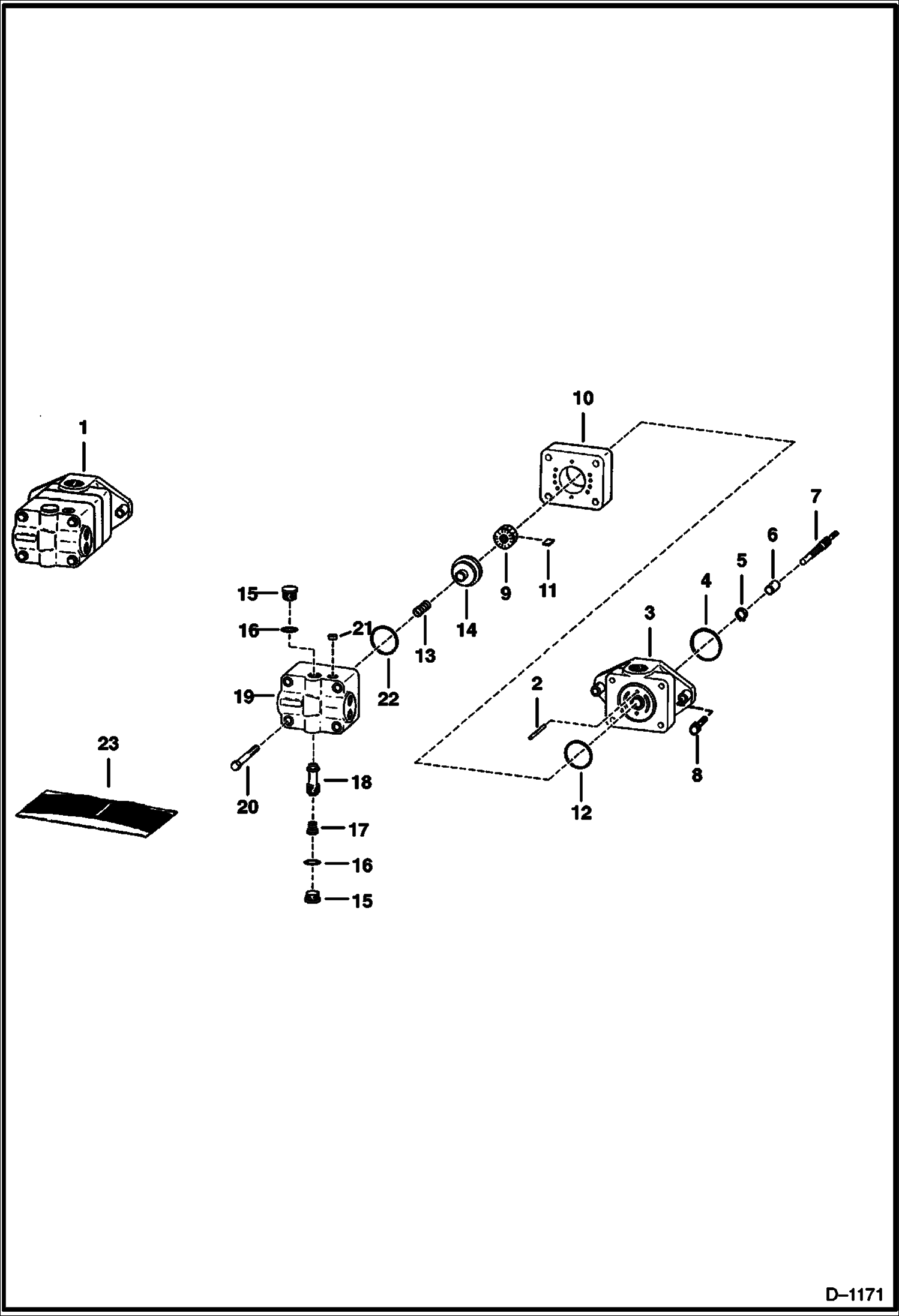

Запчасти Bobcat Articulated Loaders VANE PUMP (S/N 11999 & Below) HYDROSTATIC SYSTEM

1

6630523

PUMP vane - W/Ref. 2-6 & 8-22

2

881209

PIN

3

6630479

BODY Was 6598824 - A

4

6512949

O-RING

5

711054

SNAP RING

6

6512935

COUPLER

7

6512934

SHAFT

8

17C616

BOLT 5

9

ROTOR NSS - vane

10

RING NSS

11

VANE NSS

12

25K30216

O RING 10

13

SPRING NLA

14

PLATE NLA - pressure - Was 992509B - A

15

24K6

FITTING W/Ref. 16

16

O-RING NSS

17

6630475

SPRING

18

6630476

PISTON

19

6630473

COVER

20

17C664

BOLT

21

16F4

PLUG

22

25K30214

O RING 10

23

6630477

KIT cartridge - W/Ref. 9-12
