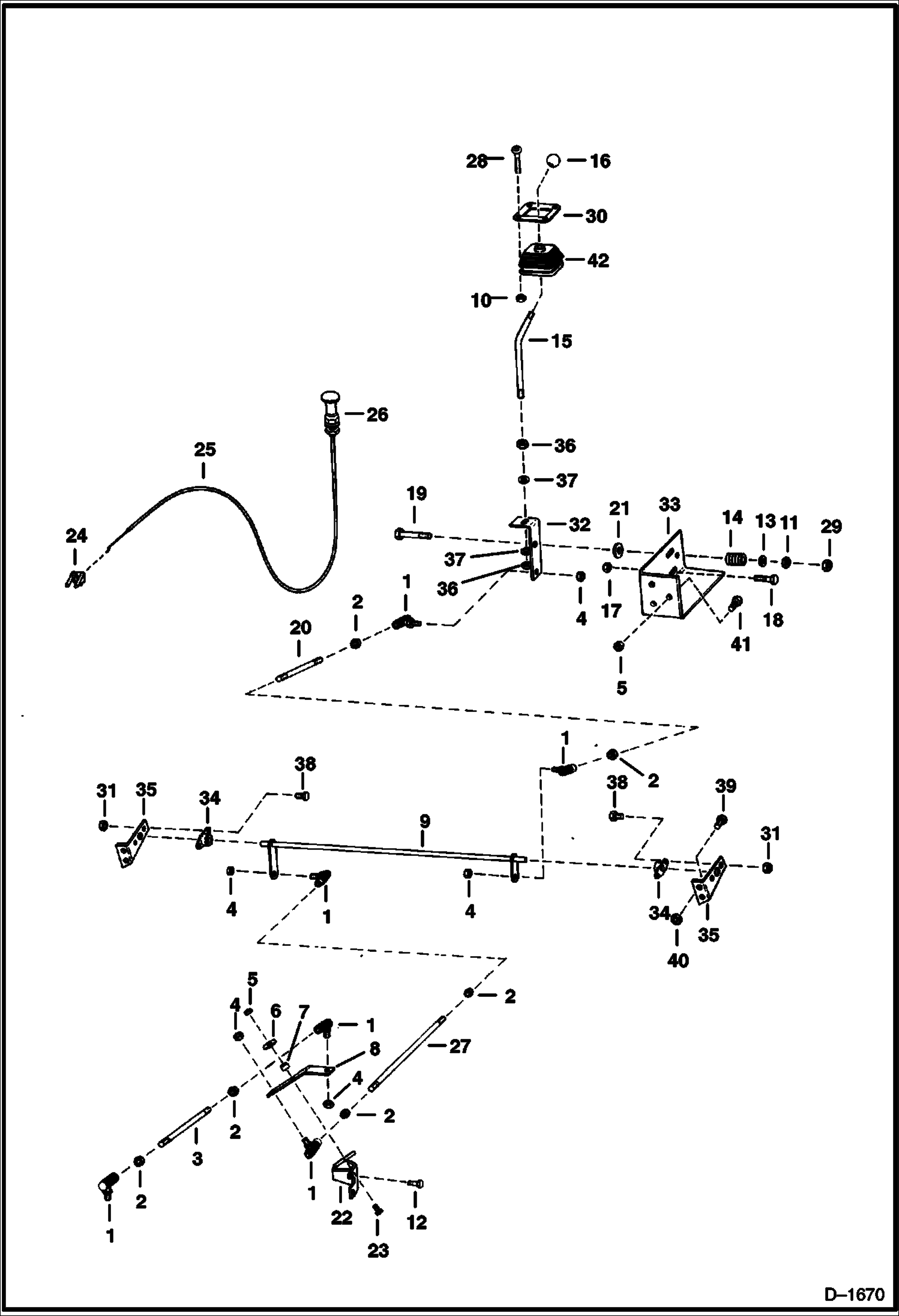

Запчасти Bobcat Articulated Loaders THROTTLE & FUEL SHUT-OFF (S/N 11999 & Below) POWER UNIT

1

6554858

BALL JOINT ball joint - fine threads

2

62D4

NUT fine threads

3

6562494

ROD

4

86D4

NUT fine threads

5

85D6

NUT, 5

6

872229

WASHER

7

6544654

BUSHING

8

6563532

BELLCRANK

9

6585287

SHAFT

10

57D6

NUT 5 Was 12D000010B - D

11

7D6

NUT

12

1CM620

BOLT Was 4CM620 - A

13

27E6

WASHER 5

14

6562126

SPRING

15

6585091

LEVER

16

6631564

KNOB

17

83D5

NUT 5

18

7C512

SCREW

19

6526846

BOLT

20

6585093

ROD

21

6562127

WASHER

22

6562495

BRACKET

23

17C620

BOLT

24

6514780

CLAMP

25

6585413

CABLE fuel shut-off

26

25E17

WASHER 5

27

6585092

ROD

28

25G612

SCREW Was 45G001012B - D

29

61D6

NUT 5

30

6585301

RETAINER

31

85D4

NUT 5

32

6585090

BELLCRANK

33

6585356

BRACKET throttle

34

6630057

BUSHING

35

6585095

BRACKET bushing

36

7D8

NUT 5

37

25E21

WASHER 5

38

17C408

BOLT

39

17C512

BOLT 5

40

85D5

NUT 5

41

17C616

BOLT 5

42

BOOT NLA - Was 6585347 - A
