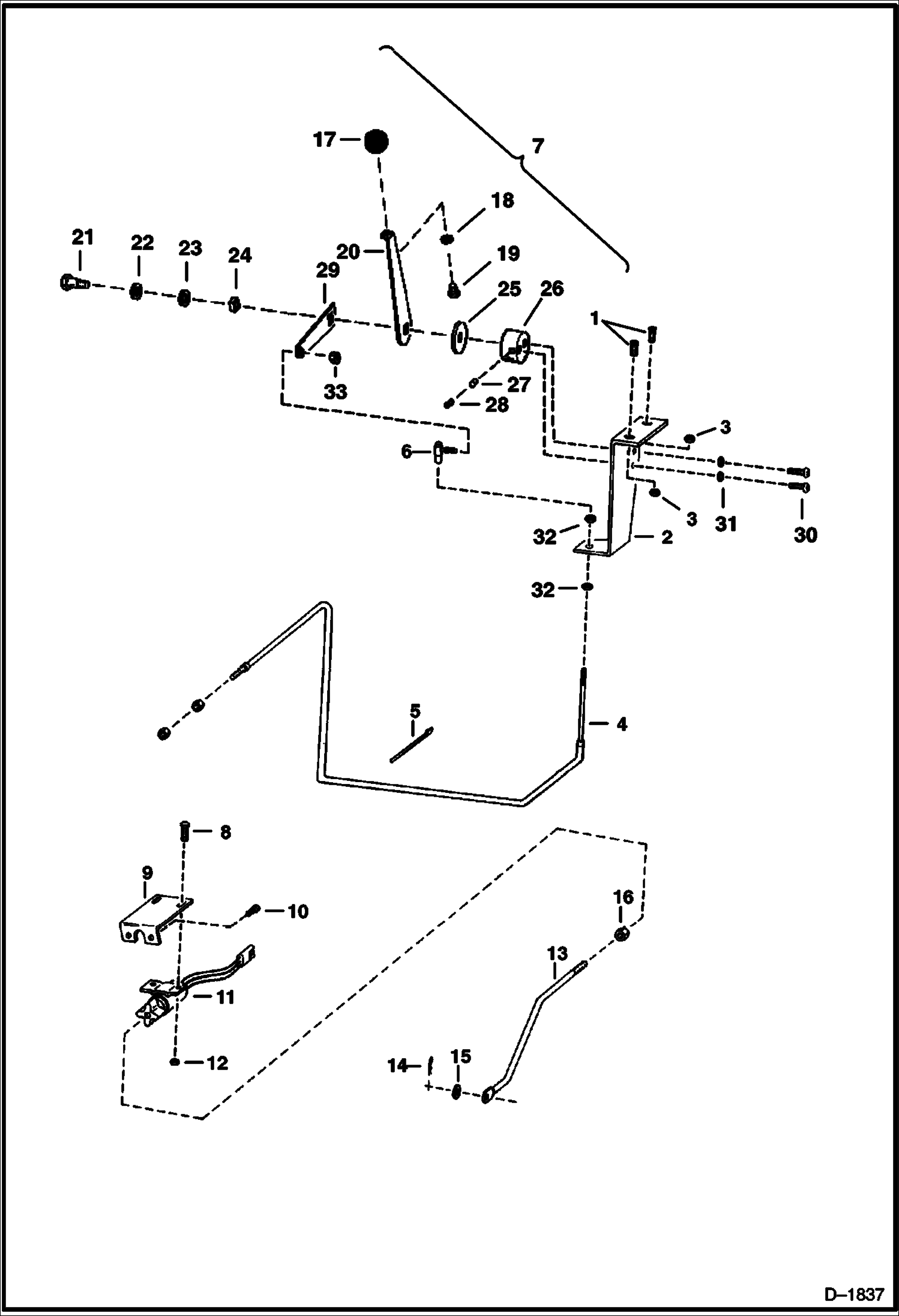

Запчасти Bobcat Articulated Loaders THROTTLE & FUEL SHUT-OFF (S/N 12001 & Above) POWER UNIT

1

35C612

BOLT Was 25G000612B - B

2

6530636

MOUNT

3

83D6

NUT 5

4

6646614

CABLE

5

6624289

STRAP, TIE

6

6554858

BALL JOINT

7

HANDLE ASSY. NLA - Order components - Was 6593560 - A

8

35C412

BOLT

9

6530577

MOUNT

10

35C512

BOLT

11

6588422

SOLENOID Was 6530732 - A

12

83D4

NUT 10

13

6530638

ROD shut-off

14

1F308

PIN, COTTER

15

25E13

WASHER 5

16

8D4

NUT

17

6631713

KNOB

18

6E5

WASHER

19

18C508

BOLT

20

6631714

LEVER

21

6631715

BOLT

22

25E21

WASHER 5

23

6631716

WASHER nylon

24

6631717

SQUARE

25

6631719

WASHER nylon

26

6631720

DRUM

27

PLUG NLA - brass - Was 6631721 - A

28

33G504

SET SCREW

29

6631718

LEVER

30

18C516

BOLT

31

4E5

WASHER

32

62D4

NUT

33

86D4

NUT
