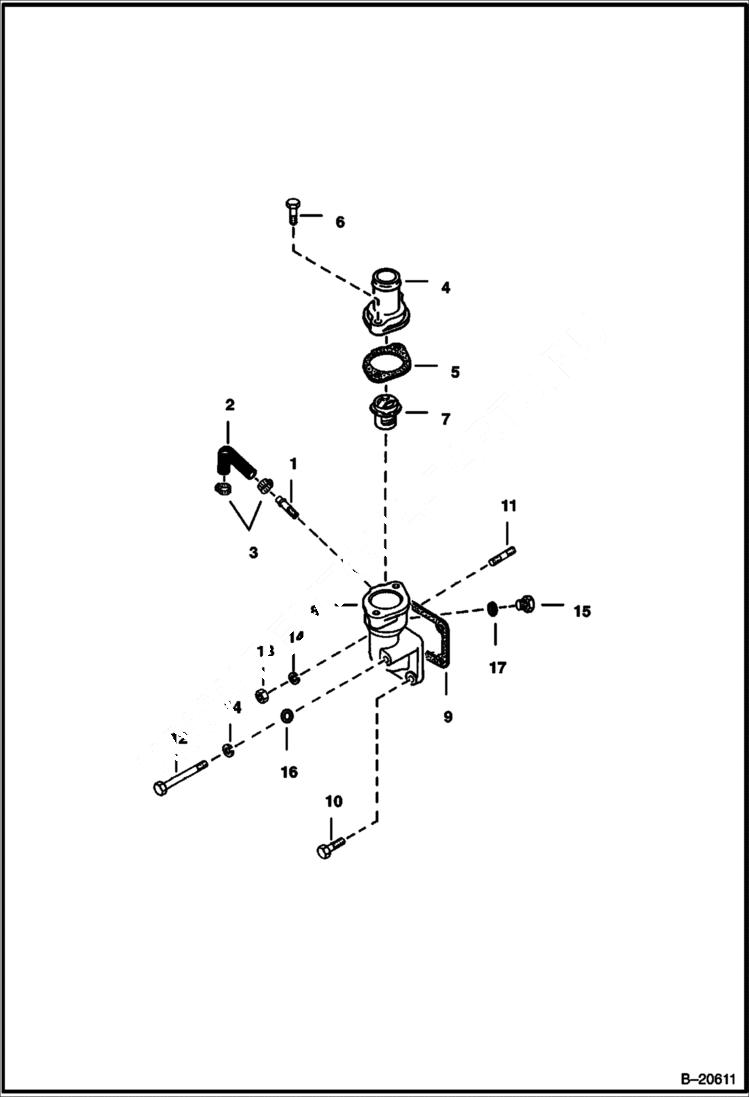

Запчасти Bobcat Articulated Loaders WATER FLANGE & THERMOSTAT POWER UNIT

1

3974677

PIPE water return - Was 6653791 - A

2

3974988

PIPE water return

3

3974679

BAND pipe

4

6598118

COVER thermostat

5

6732199

GASKET thermostat cover - Was 6666790 - A

6

1CM840

BOLT

7

3918235

THERMOSTAT

8

FLANGE NLA - W/Replaceable Pipe - Ref. 1 - Order 6646743 - Was 6630204 - A

8

6646743

FLANGE W/O Replaceable Pipe

9

6666802

GASKET water flange - Was 3974987B - A

10

4CM822

BOLT

11

3974627

STUD

12

1CM870

BOLT

13

1DM8

NUT Was 25DM8 - A

14

6EM80

WASHER, SPRING

15

6649536

PLUG Was 6599615 - A

16

1EM80

WASHER plain

17

6653562

GASKET Was 6598693 - A
