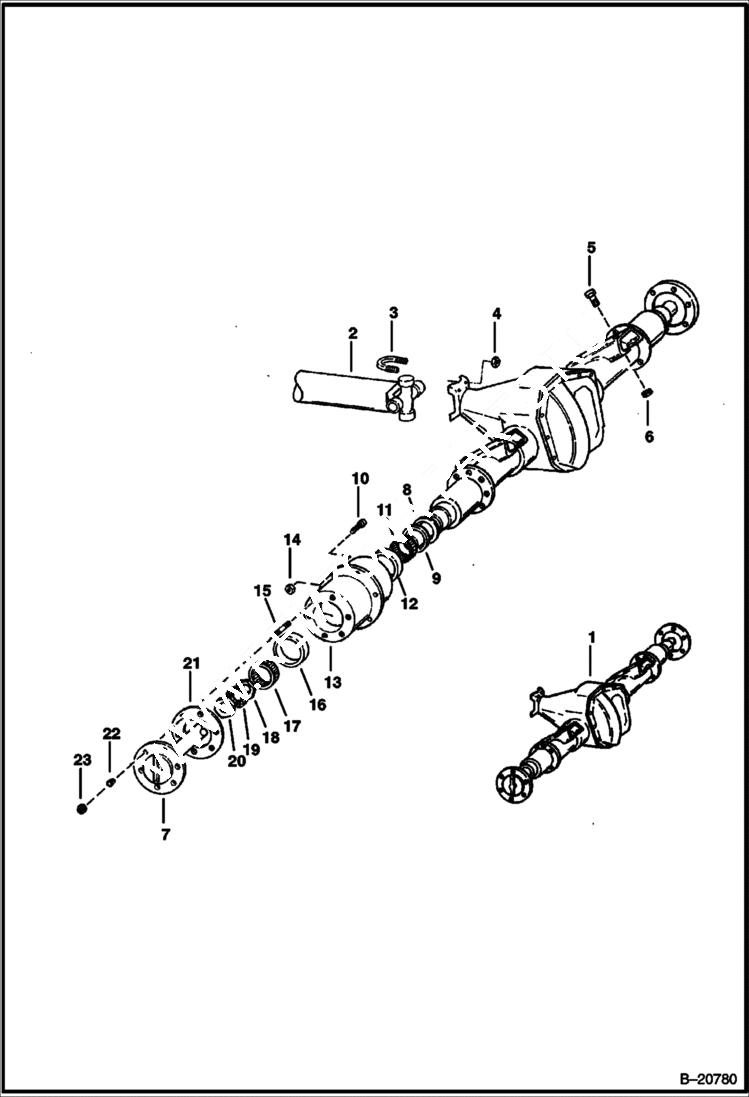

Запчасти Bobcat Articulated Loaders FRONT DIFFERENTIAL & HUB ASSY. DRIVE TRAIN

1

6584530

DIFFERENTIAL See Illustration FRONT DIFFERENTIAL/ D1589 Ref. 1 & 7 ONLY

2

6598357

SHAFT See Illustration DRIVE SHAFT/ C2691

3

954530

U BOLT Was 954530B - A

4

86D6

NUT

5

17C1224

BOLT

6

85D12

NUT, 5

7

AXLE NLA - Was 6598450 - A

8

6584010

WASHER seal

9

5203689

SEAL

10

6709170

BOLT, WHEEL Was 6559502 - A

11

710791

CONE

12

710790

BEARING

13

6584007

HUB

14

6564669

NUT, 10 Was 6519169 - A

15

6584009

STUD

16

660181

CUP

17

1313674

BEARING

18

6584032

NUT

19

6584034

WASHER

20

6584033

NUT

21

GASKET NLA - Use 6983289 - Was 6584068 - A

22

6584036

WASHER cone

23

86D8

NUT
