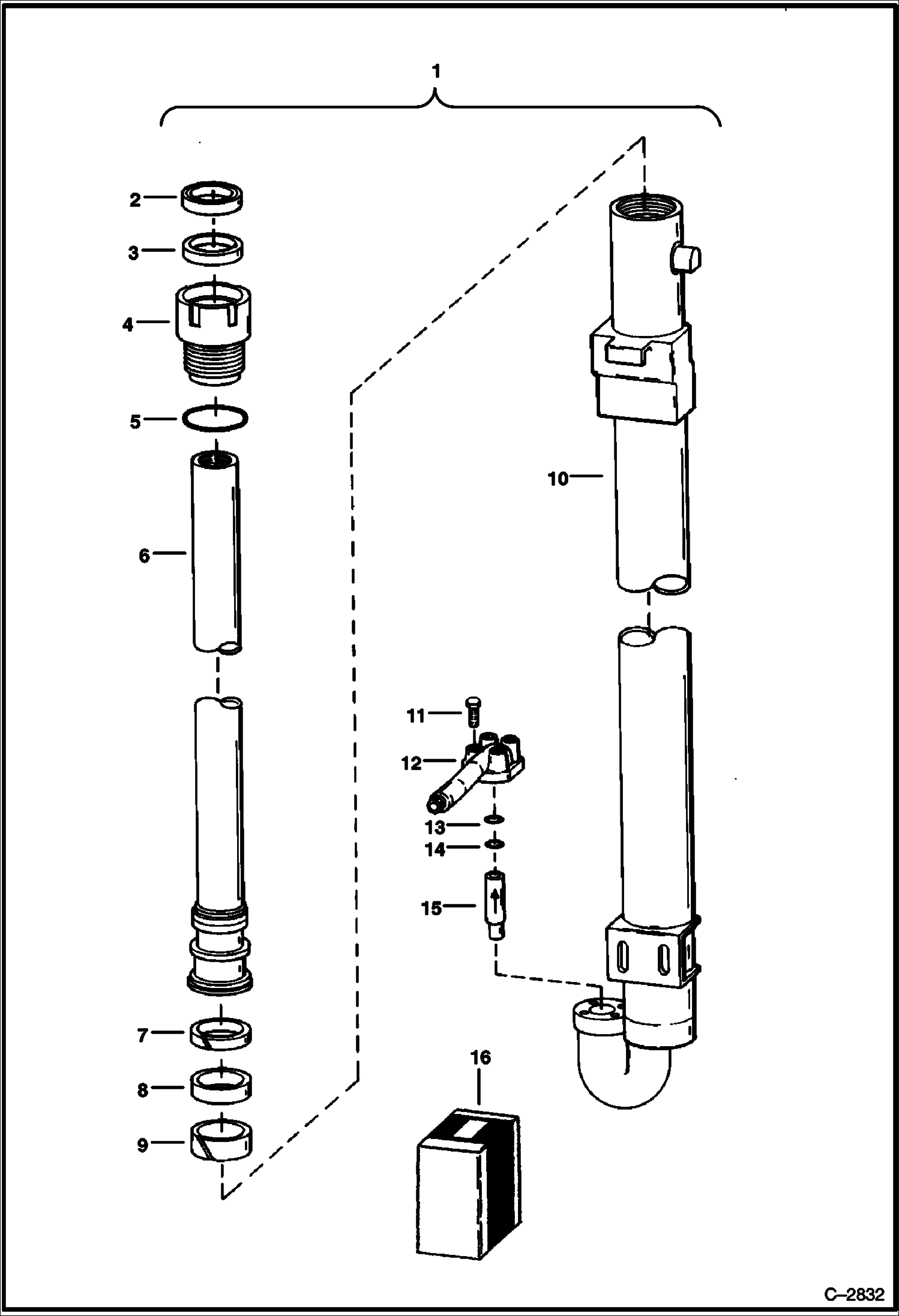

Запчасти Bobcat Articulated Loaders MAST CYLINDER HYDRAULIC SYSTEM

1

2370918

CYLINDER 10 ft.

1

2382188

CYLINDER 14 ft. 14 ft. - Was 2370925B - A

2

WIPER NLA - Was 2359391B - A

3

V-CUP NLA - Was 2359388B - A

4

2382121

GLAND

5

25K40228

O RING 10

6

2370957

ROD 10 ft.

6

2370964

ROD 14 ft.

7

2359057

RING wear

8

2358882

U-CUP

9

2358890

RING wear

10

2370931

CASE 10 ft.

10

2370938

CASE 14 ft.

11

1CM870

BOLT

12

2370983

ADAPTER

13

RING NLA - back-up - Was 73K213 - A

14

58K213

O RING 10

15

2359397

VALVE flow control

16

KIT NLA - seal - Ref. 2, 3, 5 & 7-9 - Was 6661300 - A
