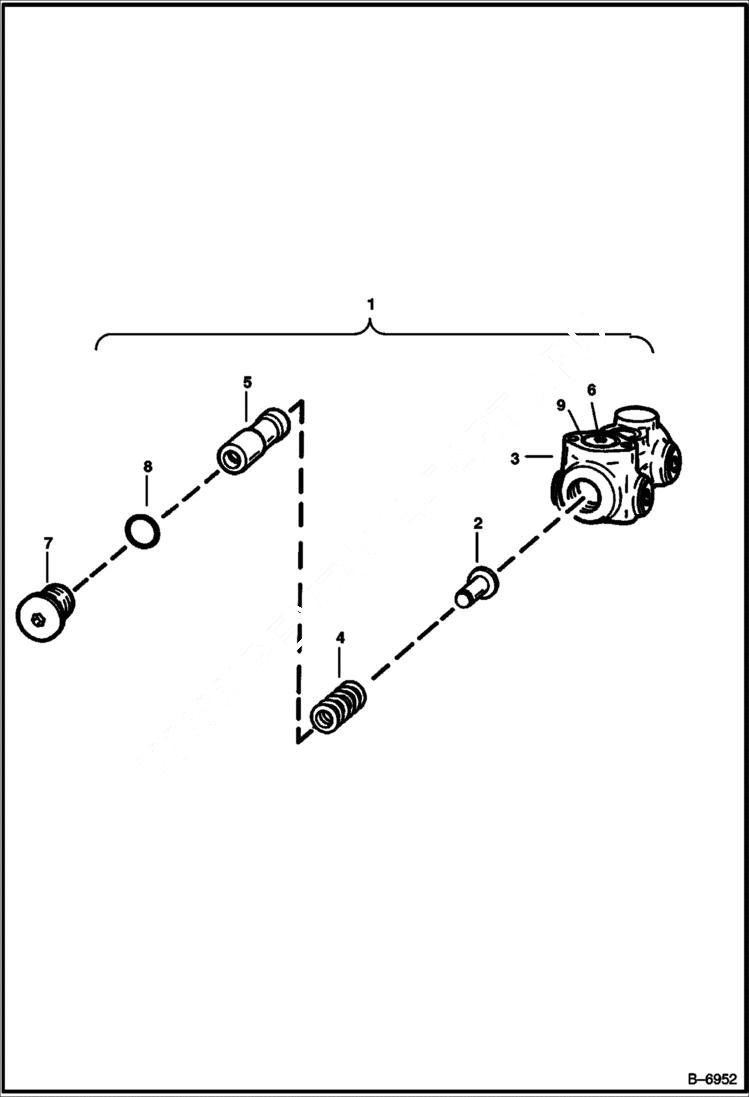

Запчасти Bobcat Articulated Loaders COUNTERBALANCE VALVE (S/N 15022 & Below) HYDRAULIC SYSTEM

1

VALVE counterbalance NLA - counterbalance - Was 233471B - A

2

PLUNGER NLA - Was 135049B - A

3

HOUSING NLA - Was 233466B - A

4

SPRING NLA - Was 135013B - A

5

VALVE NLA - Was 233467B - A

6

47K7

PLUG W/Ref. 9

7

47K5

PLUG W/Ref. 8

8

79K6

O RING 10

9

79K10

O RING 10
