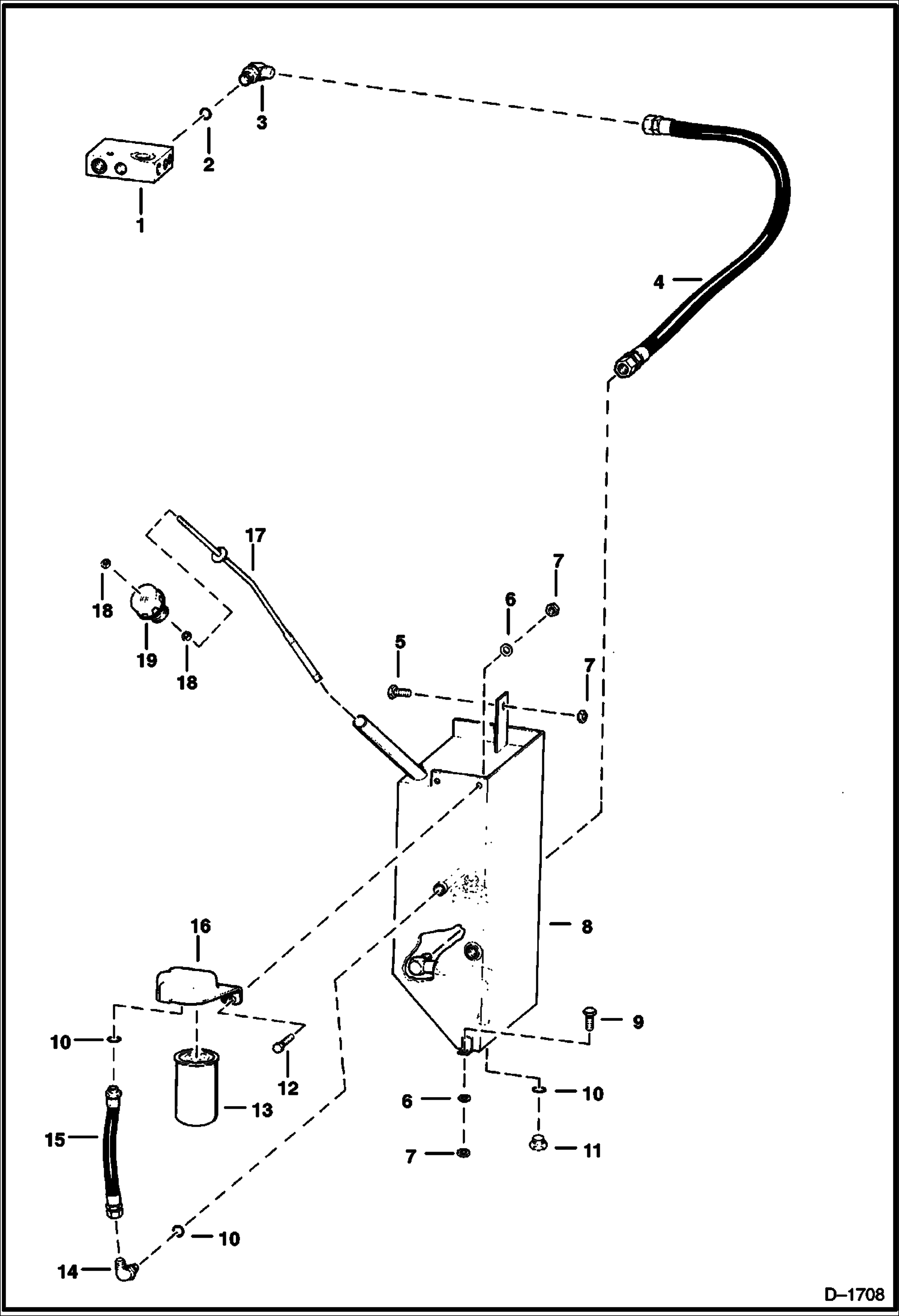

Запчасти Bobcat Articulated Loaders HYDRAULIC OIL TANK (S/N 13126 & Below) HYDROSTATIC SYSTEM

1

BLOCK See Illustration PORT BLOCK/ C2873 NLA - port - Was 6584343 - A

2

79K16

O RING 10

3

1324974

ELBOW W/Ref. 2

4

6584105

HOSE

5

84G3716

SCREW 5

6

25E17

WASHER 5

7

85D6

NUT, 5

8

6561335

TANK hyd. oil

9

17C628

BOLT

10

79K10

O RING 10

11

24K7

PLUG W/Ref. 10

12

17C616

BOLT 5

13

6515541

ELEMENT

14

17K7

ELBOW W/Ref. 10

15

6584131

HOSE

16

FILTER HEAD NLA - Order 6564877 head and 6661248 filter - Was 6563339 - A

17

6583956

DIPSTICK

18

6518383

NUT

19

6577785

CAP Drill Hole For Dipstick - Was 6583957 - A
