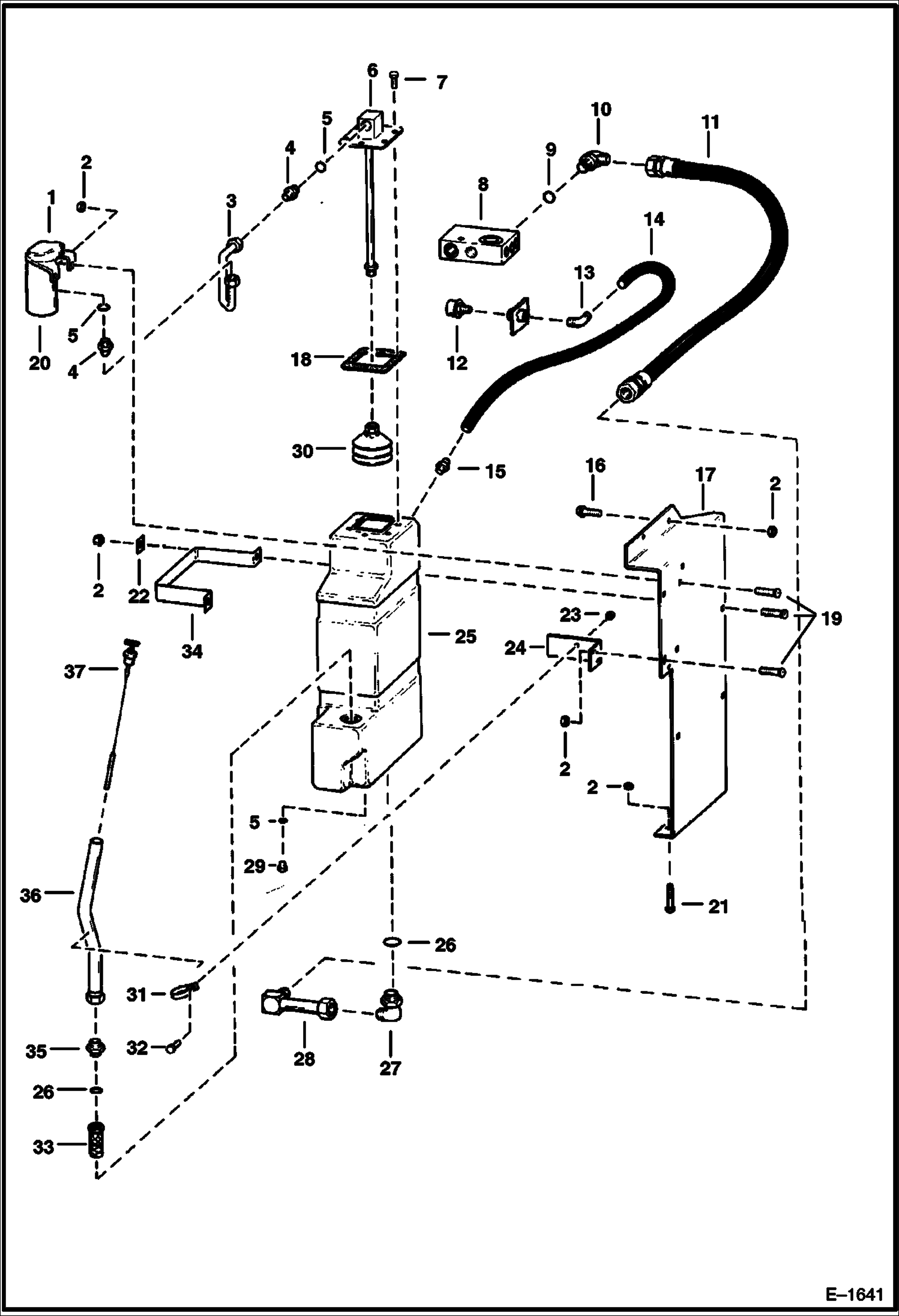

Запчасти Bobcat Articulated Loaders HYDRAULIC OIL TANK (S/N 13127 & Above) HYDROSTATIC SYSTEM

1

FILTER HEAD NLA - Order 6564877 head and 6661248 filter - Was 6563339 - A

2

85D6

NUT, 5

3

6584498

TUBE

4

15K7

FITTING W/Ref. 5

5

79K10

O RING 10

6

6584495

COVER access - W/Tube

7

17C410

BOLT 10

8

BLOCK See Illustration PORT BLOCK/ C2873 PORT

9

79K16

O RING 10

10

1324974

ELBOW W/Ref. 9

11

6584502

HOSE

12

P562516

FLR BRTHR Was 6512927 - A

13

6631061

ELBOW

14

6577821

HOSE bulk - sold per foot - Was 672221 - A

15

6512805

ADAPTER

16

84G3716

SCREW 5

17

6584490

BRACKET

18

6584499

GASKET

19

7C612

BOLT

20

6515541

ELEMENT

21

17C628

BOLT

22

6559447

WASHER

23

85D5

NUT 5

24

6584491

BRACKET

25

TANK NLA - Hyd. Oil - Was 6584503 - A

26

79K20

O RING 10

27

17K11

FITTING W/Ref. 16

28

6584492

ELBOW

29

24K7

PLUG W/Ref. 5

30

DIFFUSER NLA - Was 6584136 - A

31

6584494

CLAMP

32

17C510

BOLT

33

6564059

SCREEN

34

6584493

BAND

35

15K11

FTG W/Ref. 26

36

6584501

TUBE

37

6646632

DIPSTICK Was 6584489 - A
