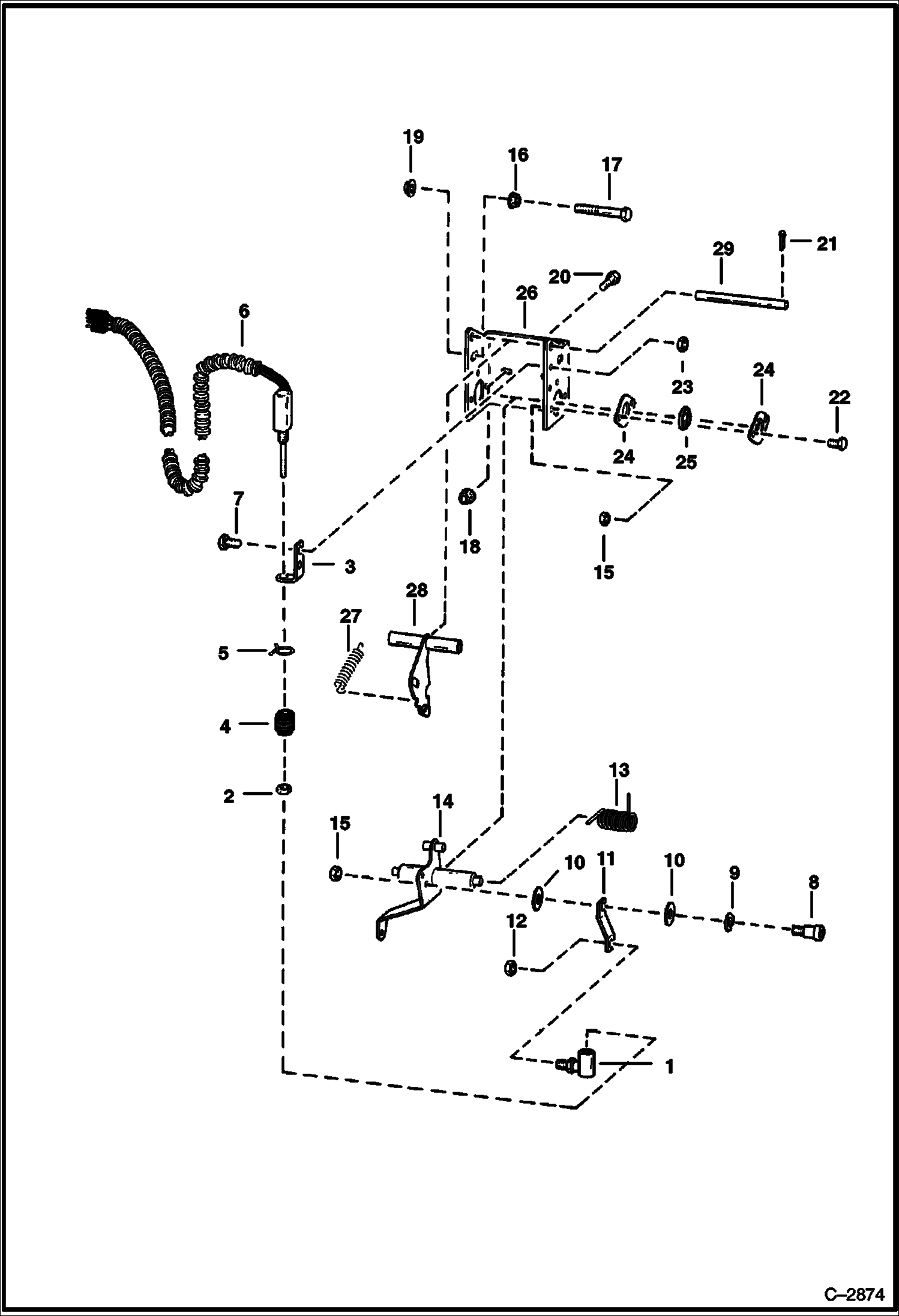

Запчасти Bobcat Articulated Loaders CENTERING MECHANISM (S/N 13061 Thru 13197) HYDROSTATIC SYSTEM

1

6512356

BALL JOINT

2

8D5

NUT

3

6584746

BRACKET

4

6599777

BOOT

5

42H6

HOSECLAM5 Was 17H000007B - A

6

6584599

SWITCH Neutral Start & Back-Up Alarm - See Service Letter 19 Nov 85 - Was 6584975 - A

7

17C512

BOLT 5

8

1307966

SCREW

9

9EM80

WSHR PLTE

10

6584346

WASHER

11

6584344

LINK

12

86D5

NUT

13

6561197

SPRING

14

6584056

BELLCRANK

15

85D4

NUT 5

16

55D6

NUT Was 6599334

17

17C652

BOLT

18

57D6

NUT 5

19

6599336

NUT

20

17C620

BOLT

21

1F416

PIN

22

17C412

BOLT 5

23

85D5

NUT 5

24

6584087

FLANGETTE

25

6584086

BEARING

26

6585451

MOUNT

27

6610077

SPRING

28

6585457

BRACKET lockout

29

6585458

PIN lockout
