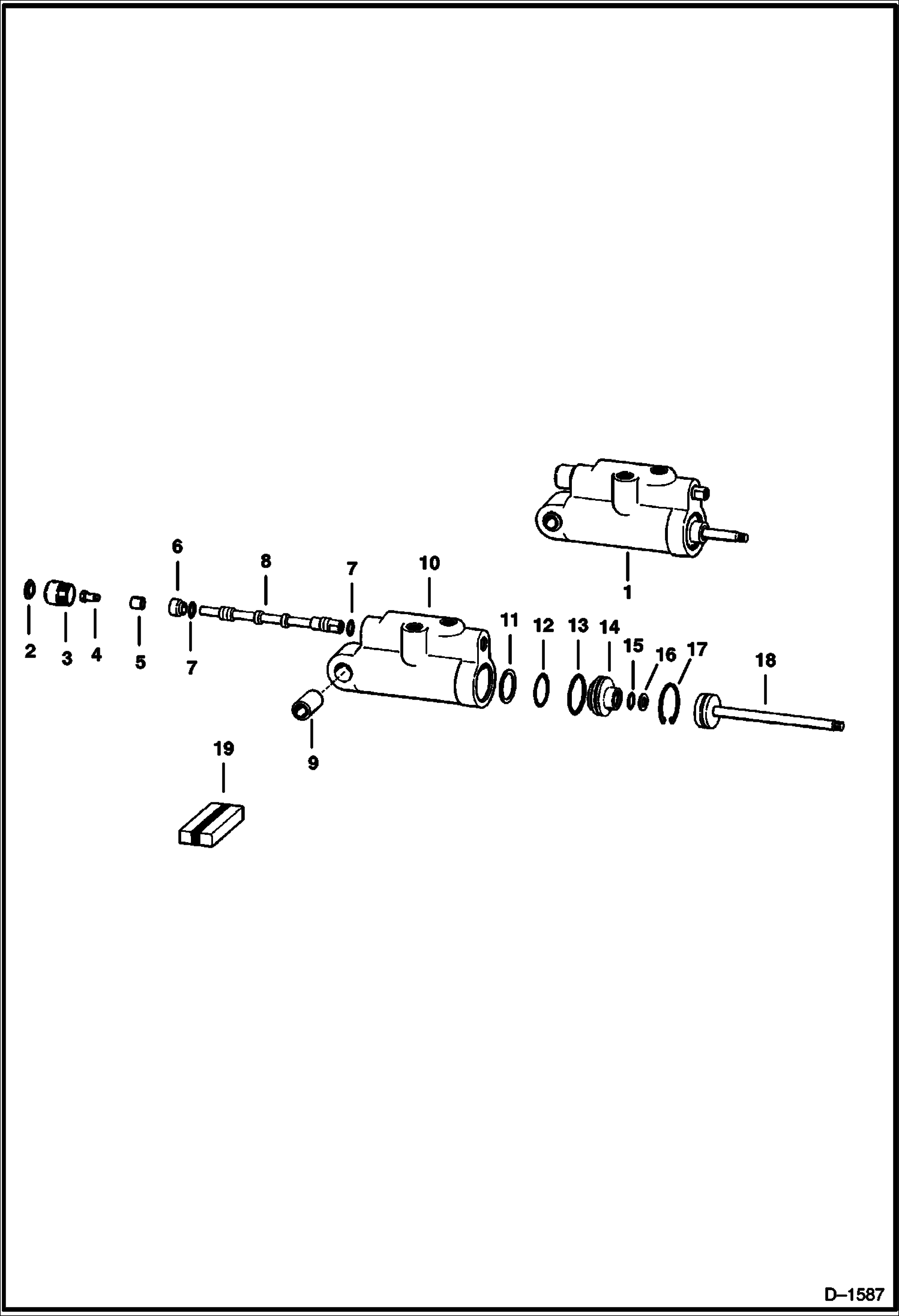

Запчасти Bobcat Articulated Loaders SERVO (S/N 13033 & Below) HYDROSTATIC SYSTEM

1

SERVO See BTI213 NLA - Order 6632644

2

2509193

PLUG

3

6598863

CAP

4

73G416

SCREW

5

6599743

STOP

6

994785

RETAINER

7

O-RING NSS

8

SPOOL NSS

9

6598865

BUSHING

10

BODY NSS

11

WEAR RING NSS

12

O-RING NSS

13

O-RING NSS

14

6598866

HEAD

15

O-RING NSS

16

SEAL NSS - wiper

17

661415

SNAP RING

18

6630483

ROD & PISTON

19

6598864

SEAL KIT ref. 7, 11-14, 16 & 17
