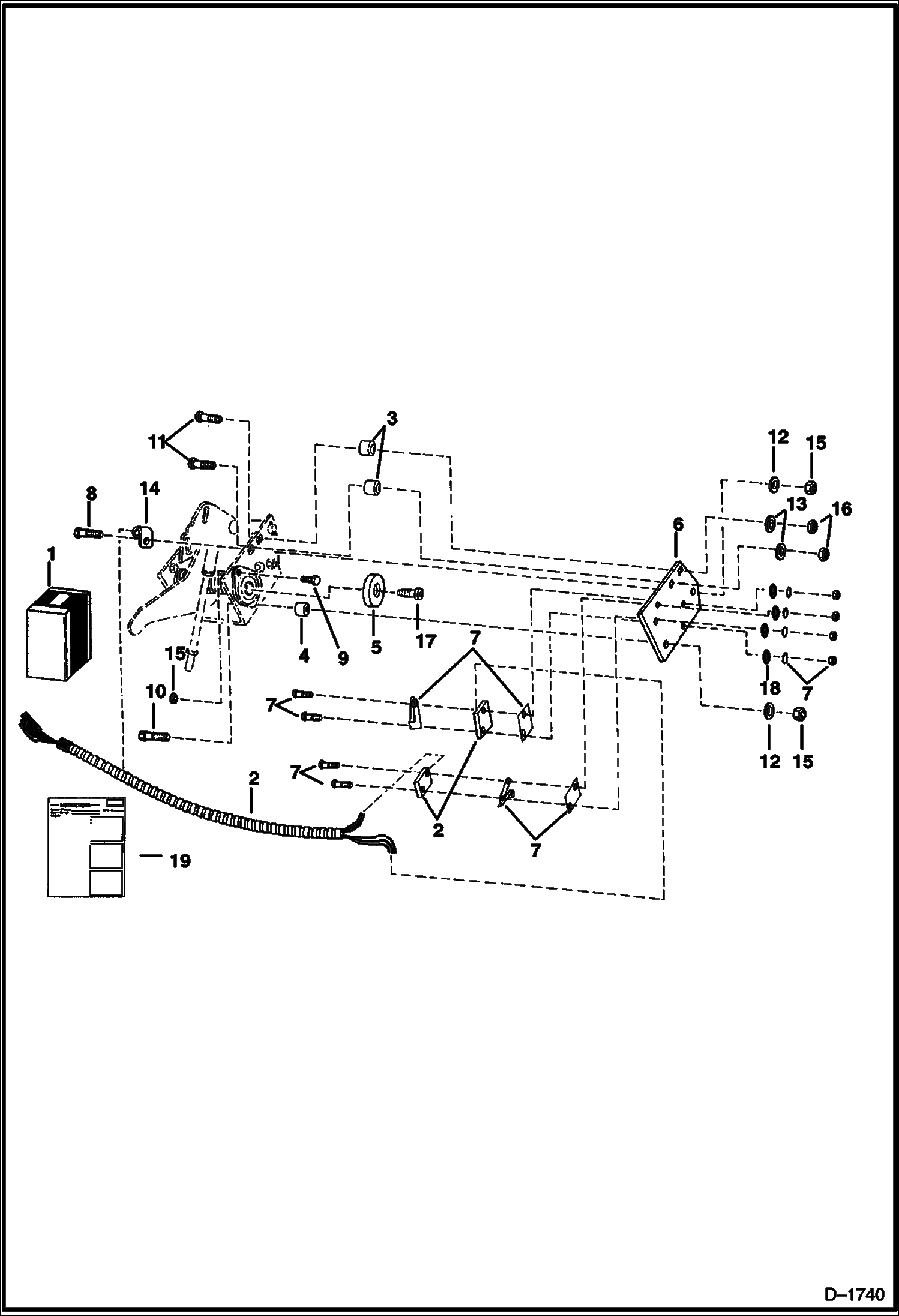

Запчасти Bobcat Articulated Loaders NEUTRAL START KIT (S/N 13197 & Below) ACCESSORIES & OPTIONS

1

6584603

KIT neutral start - Ref. 2-18

2

6584599

SWITCH neutral start & back-up alarm

3

6584605

BUSHING

4

6584640

BUSHING

5

CAM NLA - Was 6584607 - A

6

6584608

PLATE

7

6631749

HARDWARE KIT switch - Actuator, pads, screws, washers & nuts

8

17C408

BOLT

9

17C412

BOLT 5

10

17C428

BOLT

11

17C528

BOLT

12

25E13

WASHER 5

13

25E15

WASHER

14

30H29

CLAMP

15

85D4

NUT 5

16

85D5

NUT 5

17

9G512

SCREW

18

6611246

WASHER

19

INSTRUCTIONS NLA - Print Instructions from BASS - Was 6570090 - A
