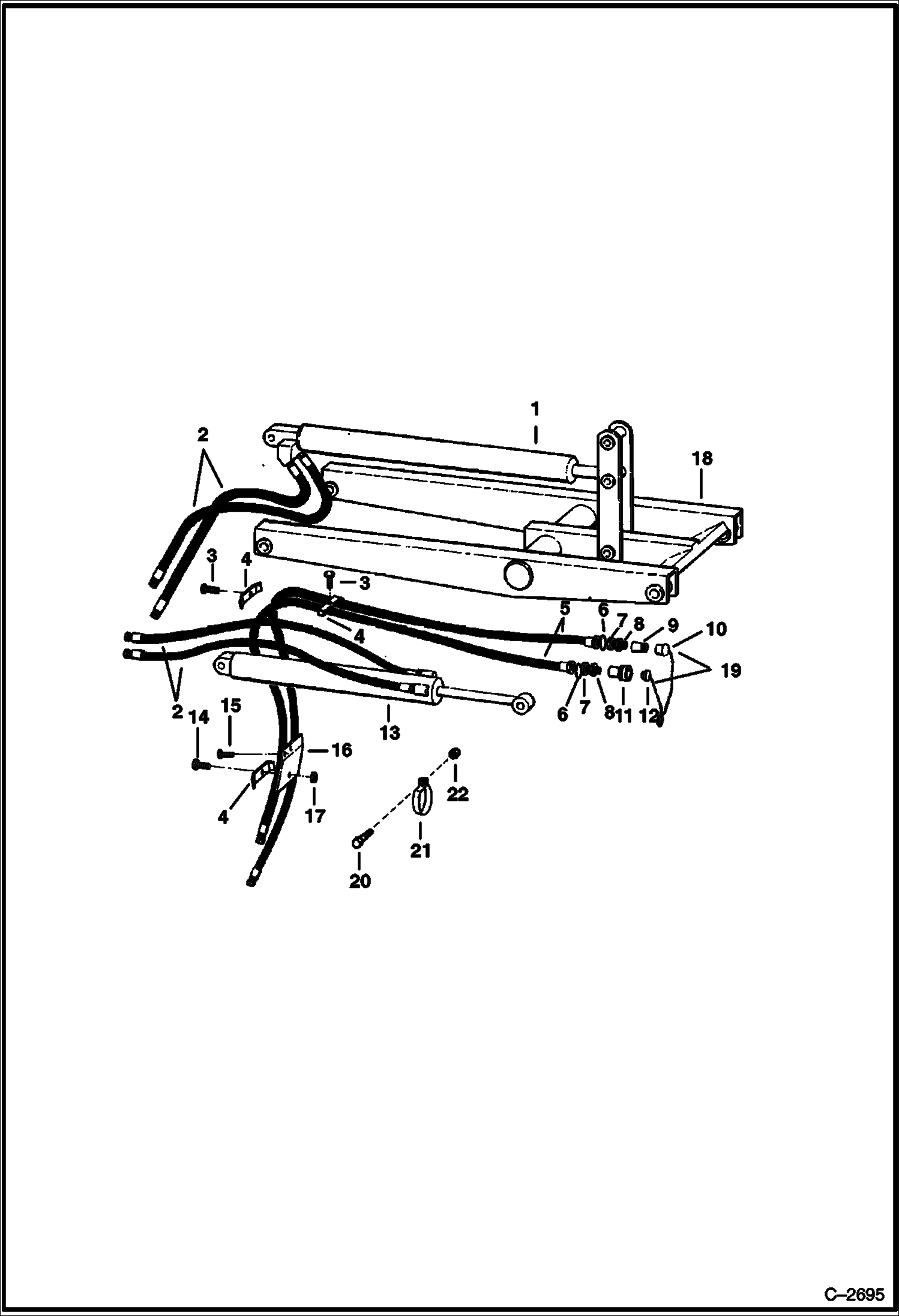

Запчасти Bobcat Articulated Loaders LIFT ARM & TILT HYDRAULICS HYDRAULIC SYSTEM

1

CYLINDER See Illustration TILT CYLINDER/ C2698 NLA - tilt - Was 6561154 - A

2

6584080

HOSE

3

84G3724

BOLT

4

6502426

CLAMP

5

HOSE NLA - Was 1300303 - A

6

79K10

O RING 10

7

86F7

LOCK NUT

8

45K7

CONNECTR W/Ref. 6

9

6598757

COUPLER, POPPET MALE straight

10

6515168

CAP Steel

11

6598758

COUPLER, POPPET FEMALE straight

11

48K16

O RING 10

12

6515167

PLUG Steel

13

6584227

CYLINDER See Illustration LIFT CYLINDER/ C2697 lift

14

17C628

BOLT

15

84G3712

BOLT 5

16

6584144

ANGLE clamp

17

85D6

NUT, 5

18

6583973

LIFT ARM See Illustration LIFT ARM & BOB-TACH/ D1581

19

6513709

CAP PLUG rubber

20

17C524

BOLT

21

6585283

CLAMP

22

85D5

NUT 5
