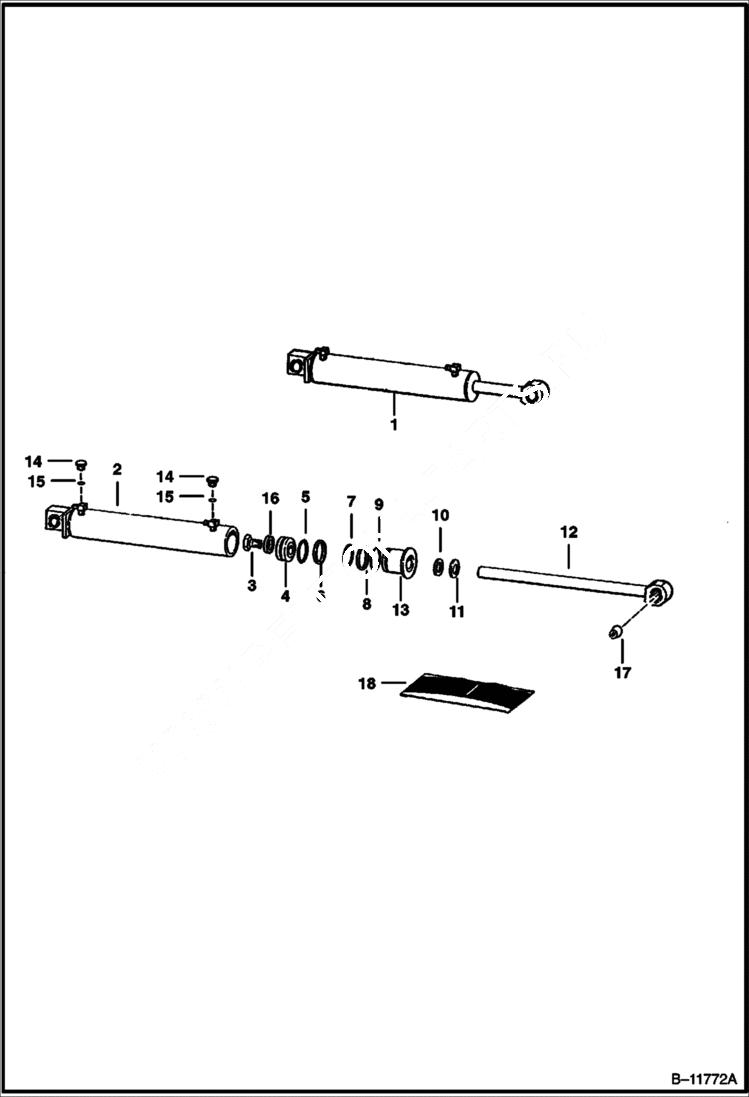

Запчасти Bobcat Articulated Loaders TILT CYLINDER (S/N 50153 Thru 50999) HYDRAULIC SYSTEM

1

CYLINDER NLA - Ref. 2-17 - Order 6538302 cylinder, 6538329 hose and 87F000006B adapter - Was 6535858 - A

2

CASE NLA - Order 6538302 - Was 6535263 - A

3

18C1440

BOLT 7/8 ''

4

6537378

PISTON Was 6534610 - A

5

O-RING NSS

6

SEAL NSS

7

O-RING NSS

8

RING NSS - back-up

9

O-RING NSS

10

SEAL NSS

11

WIPER NSS

12

6535265

ROD

13

6529986

HEAD

14

47K5

PLUG

15

79K6

O RING 10

16

28E14

WASHER

17

669928

BEARING self-aligning

18

6661291

SEAL KIT W/Ref. 5-8, 10 & 11 - Was 6529991 - A
