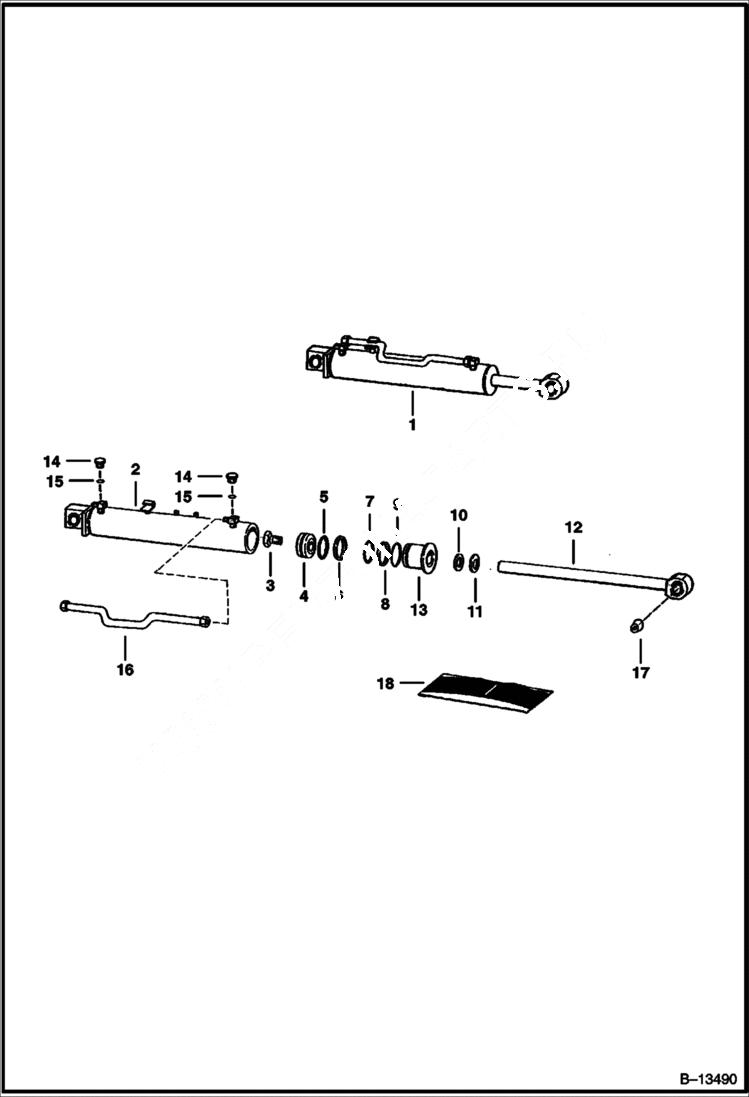

Запчасти Bobcat Articulated Loaders TILT CYLINDER (With Tube) HYDRAULIC SYSTEM

1

6538302

CYLINDER Ref. 2-17

2

6537775

CASE

3

6586508

SCREW 1 ''

4

6537774

PISTON

5

O-RING NSS

6

SEAL NSS

7

O-RING NSS

8

RING NSS - back-up

9

O-RING NSS

10

SEAL NSS

11

WIPER NSS

12

6537945

ROD

13

6586718

HEAD, CYL TILT Was 6539498 - A

14

47K5

PLUG

15

79K6

O RING 10

16

6537241

TUBE

17

669928

BEARING self-aligning

18

6589796

SEAL KIT W/Ref. 5 - 11 - Was 6661054 - A
