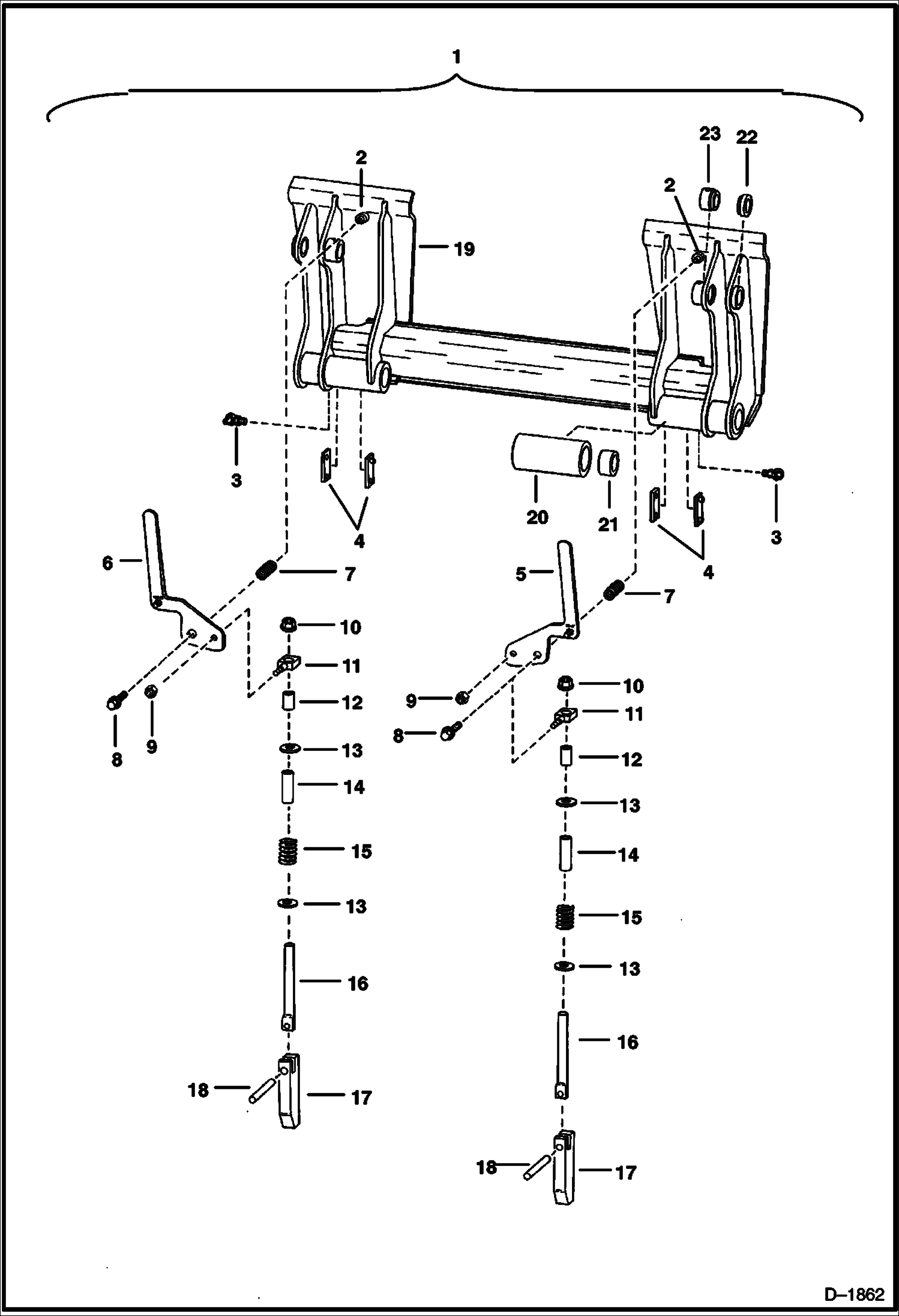

Запчасти Bobcat Articulated Loaders BOB-TACH (S/N 12464 & Below) MAIN FRAME

1

BOB-TACH NLA - Ref. 2-19 - Order 6539921 Bobtach and 2 of 6539922 link

2

6562013

STUD weld-on

3

12H25

FITTING

4

6562026

INSERT

5

6585776

LEVER R.H.

6

6585775

LEVER L.H.

7

6704453

SPRING Was 6578252 - C

8

35C608

BOLT

9

83D6

NUT 5

10

85D8

NUT, 5

11

6585779

PIVOT linkage

12

6585780

SPACER TUBE

13

25E21

WASHER 5

14

6585781

GUIDE TUBE

15

6578253

SPRING, COMPRESSION compression - Was 6562018 - A

16

6585777

LINK

17

6585778

WEDGE

18

14J3720

PIN

19

FRAME NSS - Order Ref. 1

20

6585631

BUSHING Weld-on - W/Ref. 21

21

6730997

BUSHING, WELD-ON Press-in - Was 711273B - A

22

6585638

BUSHING Weld-on

23

6555987

BUSHING weld on
