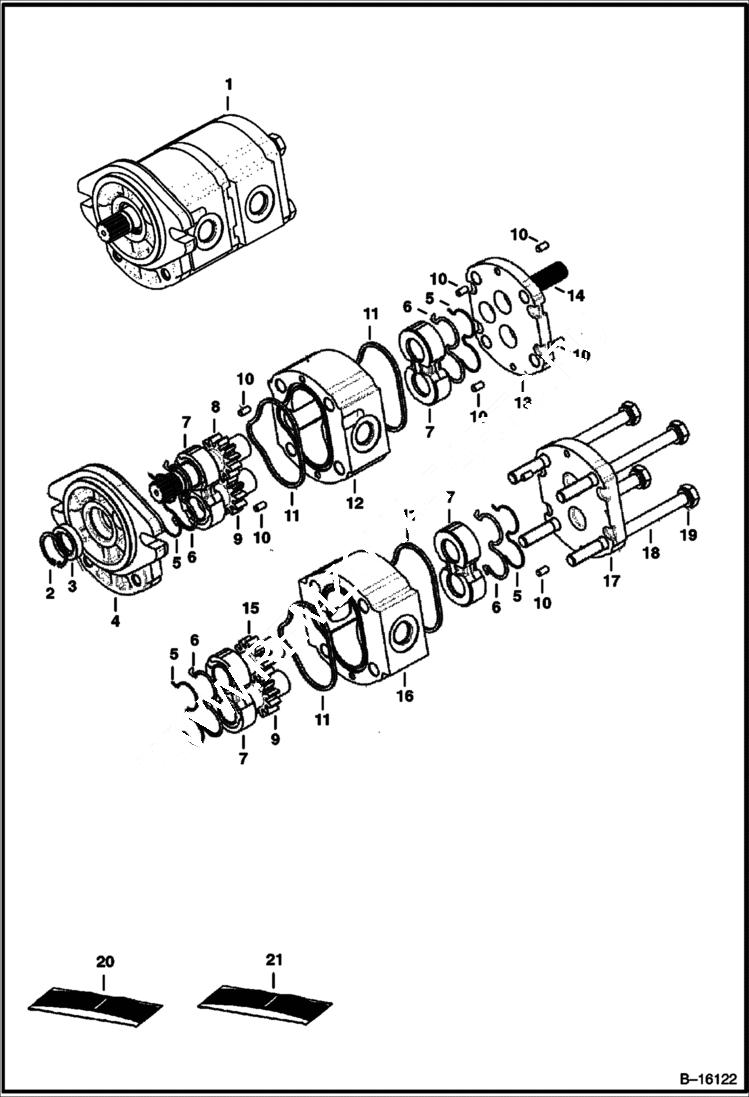

Запчасти Bobcat Mini Tracks Loaders GEAR PUMP (S/N 5206 11905 & Bel., 5224 11088 & Bel.) HYDRAULIC SYSTEM

1

GEAR PUMP NLA - gear - Ref. 2-19 - Order 6681921 - Was 6678819 - A

2

6679164

SNAP RING

3

6679163

SEAL shaft

4

6679153

COVER front

5

RING NSS - back-up

6

SEAL NSS

7

PLATE NSS - thrust - Order Ref. 21

8

SHAFT NSS - drive - Order Ref. 21

9

GEAR NSS - Order Ref. 21

10

6679168

DOWEL PIN

11

SEAL NSS

12

BLOCK NSS - Order Ref. 21

13

6679166

PLATE

14

6679167

SHAFT splined

15

6679157

GEAR

16

BLOCK NSS - Order Ref. 21

17

6679154

COVER rear

18

6679159

BOLT

19

6679160

WASHER

20

6679749

SEAL KIT Ref. 5, 6 & 11

21

6679758

SECTION KIT front

21

6679759

SECTION KIT back
