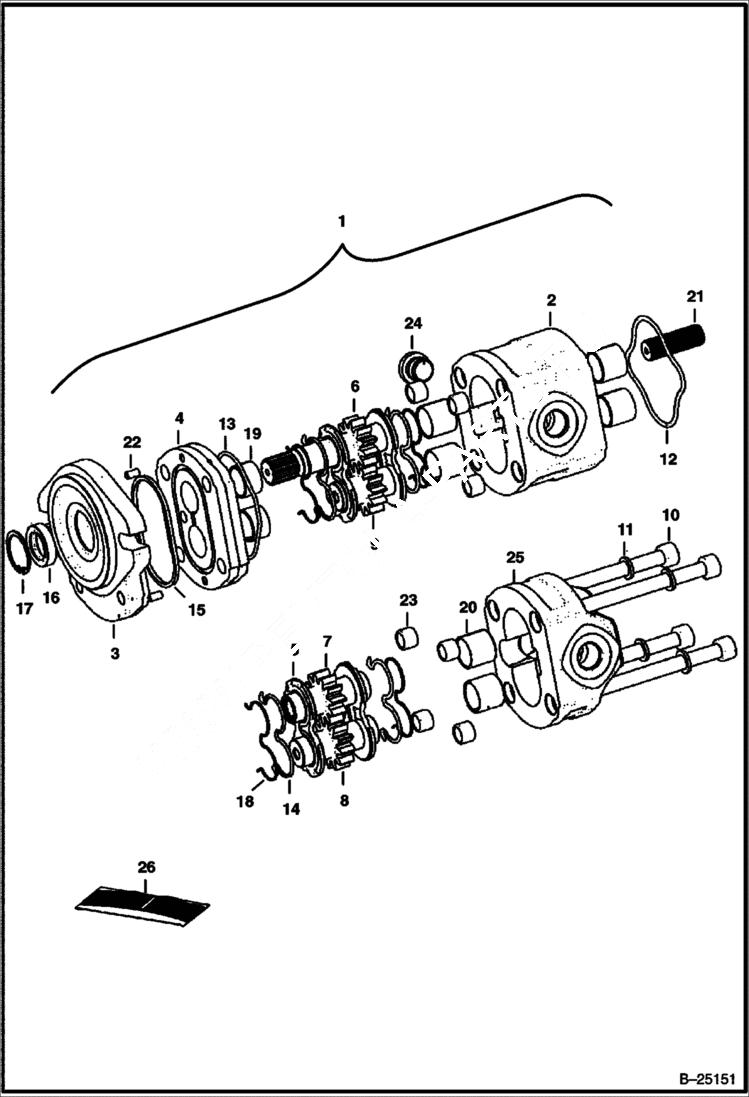

Запчасти Bobcat Mini Tracks Loaders GEAR PUMP (S/N 5206 11906 & Abv, 5224 11089 & Abv) HYDRAULIC SYSTEM

1

6681921

GEAR PUMP gear - Ref. 2-25

2

BLOCK NSS

3

6683381

COVER FRONT front

4

6683382

FLANGE

5

PLATE NSS - thrust

6

SHAFT NSS - drive

7

GEAR NSS

8

GEAR NSS

9

GEAR NSS

10

6683383

SCREW

11

6679160

WASHER

12

6683384

SEAL

13

6683385

SEAL

14

SEAL NLA - Order Ref. 26 - Was 6679161 - A

15

6683386

SEAL

16

6679163

SEAL

17

6679164

SNAP RING

18

RING BACK-UP back-up NLA - Order Ref. 26 - Was 6679165 - A

19

6683387

BEARING SLEEVE bearing

20

6683388

BEARING SLEEVE bearing

21

6683389

SHAFT

22

6679168

DOWEL PIN

23

6683390

BRUSH STEEL

24

6683391

PLUG

25

COVER NSS - rear

26

6685012

SEAL KIT
