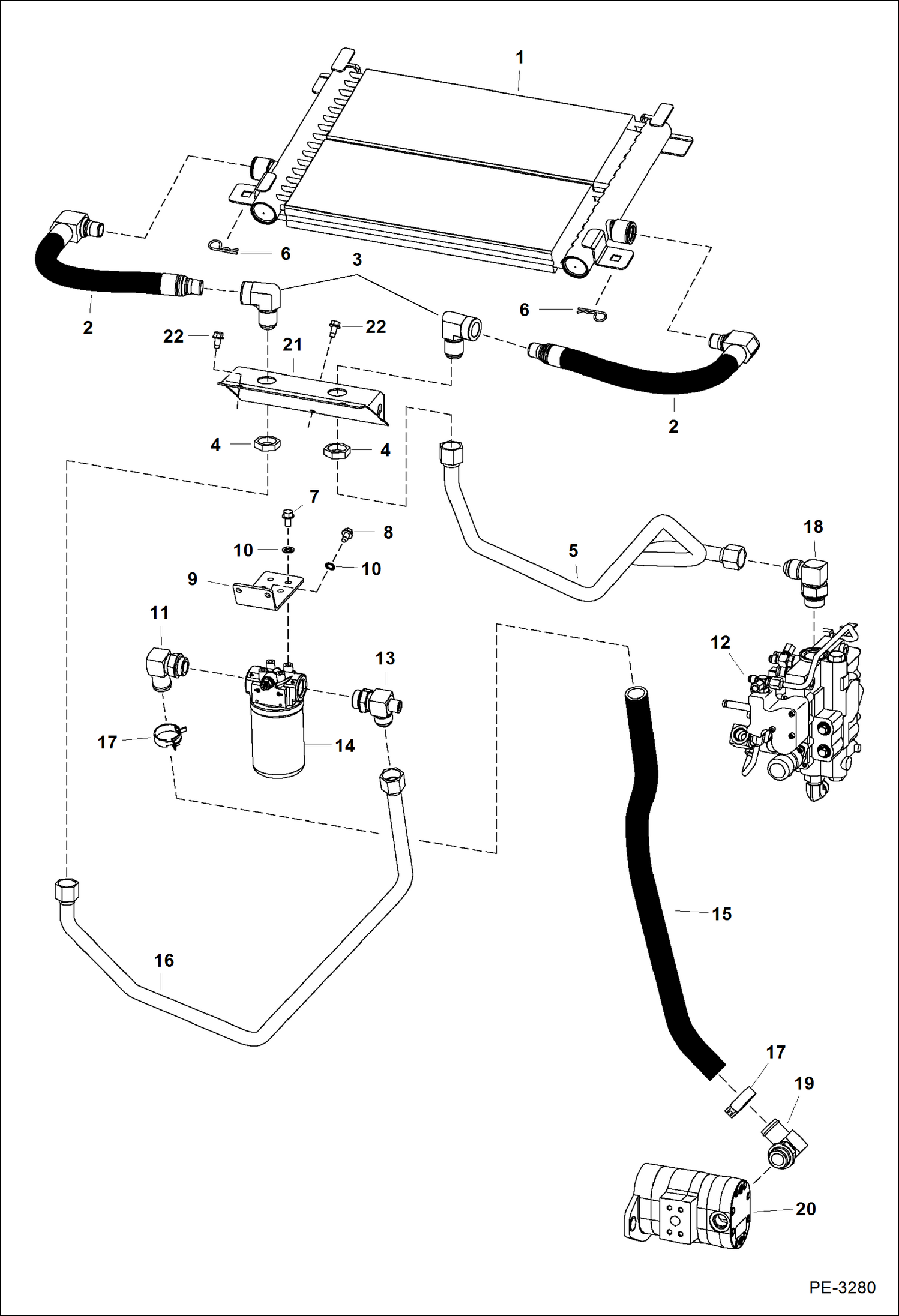

Запчасти Bobcat S-Series HYDROSTATIC CIRCUITRY (W/Cooler) (W/Cooling Upgrade) (S/N 530713066 & Above, 530811455 & Above) HYDROSTATIC SYSTEM

1

6678156

COOLER W/STC-12 fitting

1

6681501

SEAL KIT STC-12

1

7103750

EXCHANGER, OIL COOLER See BTI391 for high flow opt. - W/STC-16 fitting

1

6688523

SEAL KIT STC-16

2

6684457

HOSE, HYD ASSY STC W/STC-12 fitting

2

6681501

SEAL KIT STC-12

2

7103751

HOSE for high flow opt. - W/STC-16 fitting

2

6688523

SEAL KIT STC-16

3

6678970

ELBOW for manual controls, AHC, ACS - W/STC-12 fitting

3

6690950

O-RING

3

7103749

ELBOW high flow opt. - W/STC-16 fitting

3

6690949

O-RING

3

6681501

SEAL KIT STC-12

3

6688523

SEAL KIT STC-16

4

86F10

NUT

5

7125181

TUBELINE

5

7142858

TUBELINE

6

1318565

COTTER PIN

7

35C612

BOLT

8

84G3710

SCREW

9

7103903

MOUNT filter

10

6E6

WASHER

11

6697791

ELBOW Was 6729306 - B

12

VALVE See Illustration HYDRAULIC CONTROL VALVE/ PE2379 See Illustration HYDRAULIC CONTROL VALVE/ PE2378 - control

13

6731527

TEE

13

79K16

O RING 10

14

6678155

FILTER ASSY

14

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long

15

7126554

HOSE

16

7125182

TUBELINE

16

7142859

TUBELINE

17

5HM42

HOSECLAMP

18

6813964

ELBOW

18

79K16

O RING 10

18

58K022

O-RING 10

19

7112788

ELBOW

20

PUMP See Illustration GEAR PUMP/ MS1454

21

7142876

MOUNT

22

84G3712

BOLT 5
