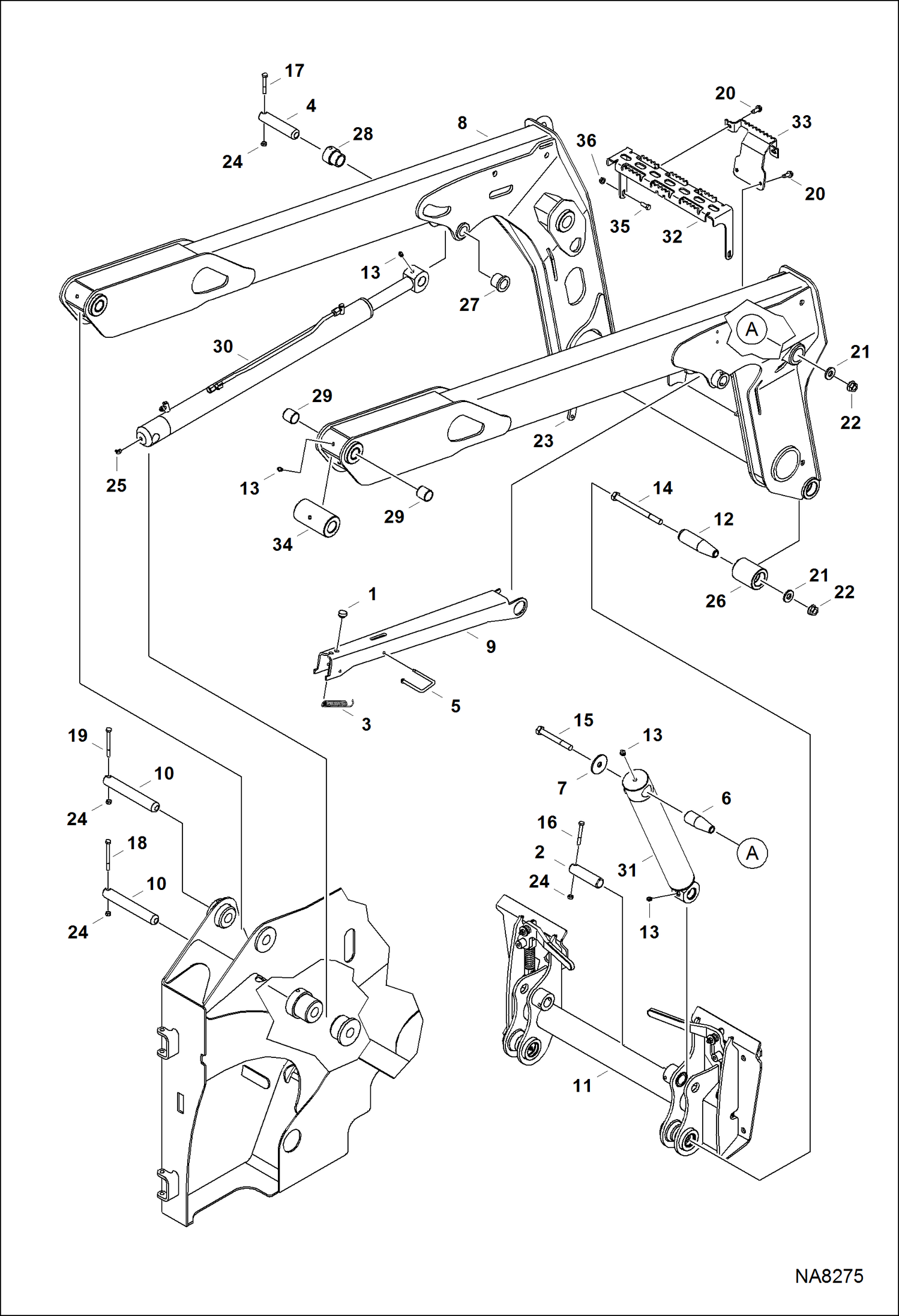

1
6519178
BUMPER
2
6577954
PIN, PIVOT rod end - tilt cylinder
3
6700743
SPRING
4
6702935
PIN, PIVOT rod end - lift cylinder
5
6714810
PIN retainer
6
7148031
PIN, PIVOT TAPERED base end - tilt cylinder
7
6731160
WASHER
8
7139356
LIFT ARM
9
7192633
SUPPORT, LIFT ARM
10
7209779
PIN, PIVOT base end - lift cylinder
11
BOB-TACH See Illustration BOB-TACH/ NA6534
12
7135590
PIN, PIVOT TAPERED lift arm to bob-tach
13
10H25
FITTING, GREASE 5
14
17C1080
SCREW
15
17C10120
BOLT
16
17C644
BOLT
17
17C640
BOLT 5
18
17C664
BOLT
19
17C660
BOLT
20
84G3716
SCREW 5
21
27E10
WASHER
22
53D10
NUT
23
7135693
MOUNT weld-on
24
85D6
NUT, 5
25
11H15
GREASE FITTING
26
7145439
BUSHING, WELD-ON weld-on
27
7192623
BUSHING, PIVOT weld-on
28
7192622
BUSHING, PIVOT weld-on
29
6717562
BUSHING, WEAR
30
CYLINDER, LIFT See Illustration LIFT CYLINDER/ NA6578
31
CYLINDER, TILT See Illustration TILT CYLINDER/ NA6577
32
7233244
STEP, LIFT ARM
33
7233245
BRACKET
34
7139376
BUSHING, PIVOT
35
17C616
BOLT 5
36
97D6
NUT 10
