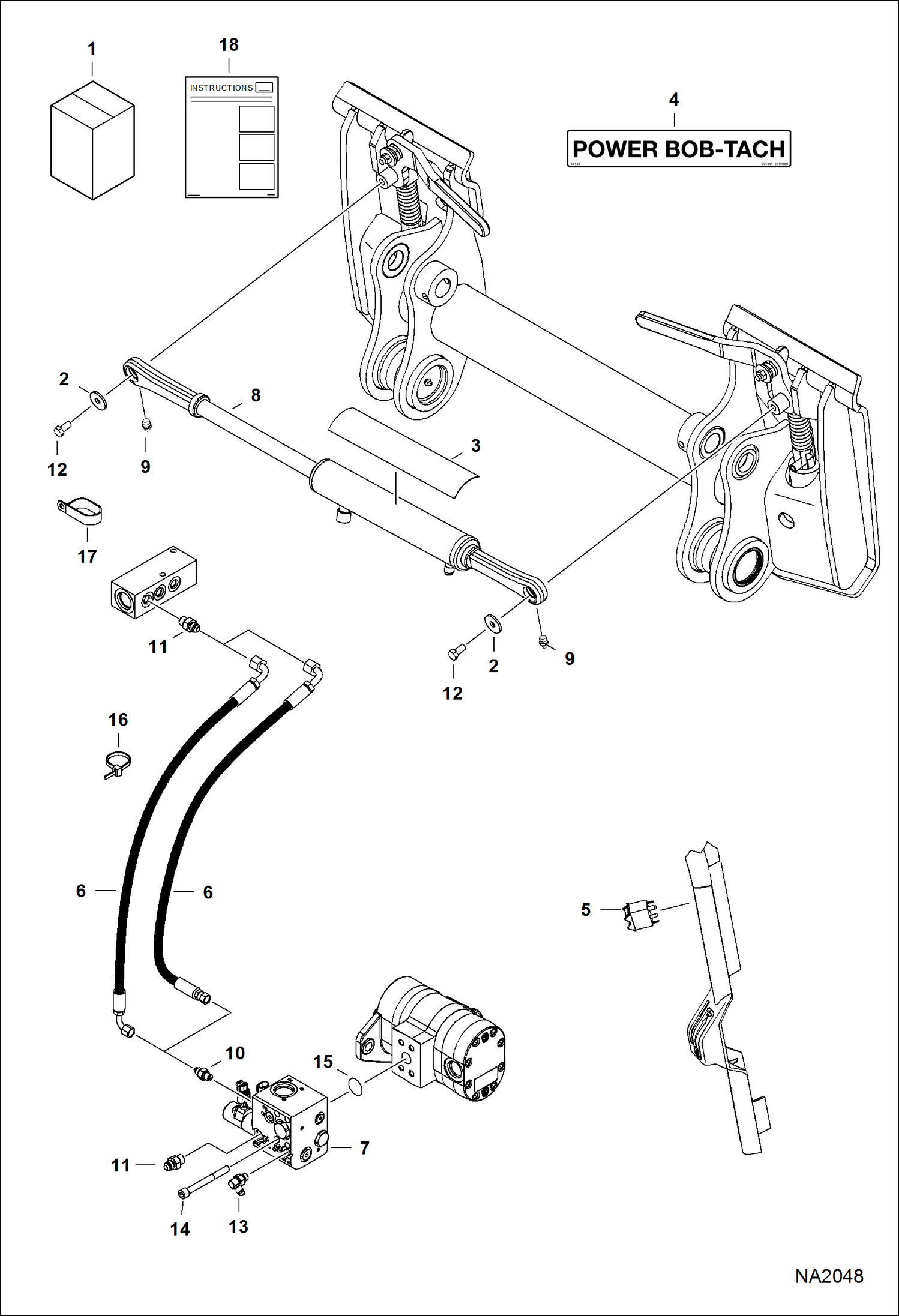

Запчасти Bobcat S-Series POWER BOB-TACH (Kit) (S/N A3NT11001 - 11874, A3NU11001 - 11022) ACCESSORIES & OPTIONS

1

KIT, POWER BOB-TACH See Illustration POWER BOB-TACH/ NA2819 NLA - Was 7167366 - A

2

619021

WASHER, 5

3

6555341

SAFETY TREAD

4

6719888

DECAL

5

7001712

SWITCH

6

HOSE ASSY NLA - Order 7184314 hose - this hose can only be used on track loaders - valve end of hose is straight - Was 7159736 - A

6

7184314

HOSE, HYD ASSY this hose must be used on skid steer loaders - valve end of hose is 90 degrees

7

VALVE, POWER BOB-TACH See Illustration POWER BOB-TACH/ MS2724

8

CYLINDER, POWER BOB-TACH See Illustration POWER BOB-TACH/ PE3954

9

10H35

FITTING, GREASE 10

10

15KB0404

FTG HYD S Connector

11

15KB0606

FITTING, HYD CONNECTOR

12

17C612

BOLT 5

13

17KB0404

FTG HYD ELBOW 90

14

73G656

SCREW

15

55K214

O-RING

16

6624289

STRAP, TIE

17

31H42

CLIP

18

6987220

INSTRUCTIONS
