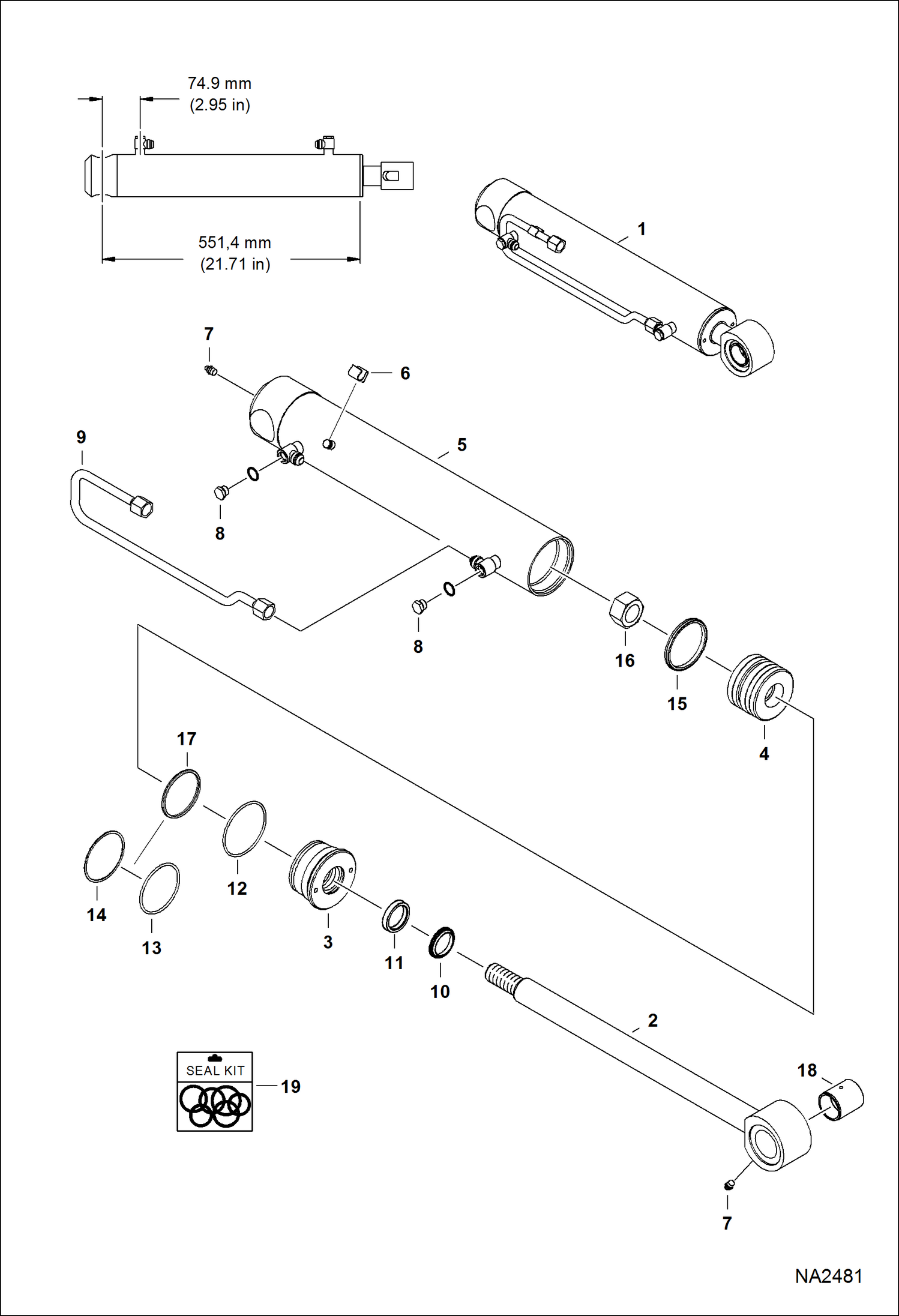

Запчасти Bobcat S-Series TILT CYLINDER (RH) (551,4 mm - 21.71 Case Tube Length) HYDRAULIC SYSTEM

1

CYLINDER, TILT NLA - Ref. 2-18 - Order 7236322 & 7236392 tilt cylinder - before ordering repair parts, make sure that this is the correct style cylinder - note the length shown on the drawing page - W

2

SHAFT, ROD CYL TILT NLA - Order 7236322 & 7236392 tilt cylinder - Was 7150100 - A

3

HEAD, CYL TILT NLA - Order 7236322 & 7236392 tilt cylinder - Was 6539185 - B

4

PISTON, CYL TILT NLA - Order 7236322 & 7236392 tilt cylinder - Was 7150106 - A

5

TUBE, CASE CYL NLA - Order 7236322 & 7236392 tilt cylinder - Was 7138357 - A

6

6690911

CLAMP

7

10H25

FITTING, GREASE 5

8

6812171

PLUG

9

7138359

TUBELINE, HYD

10

6690707

WIPER, ROD CYL

11

6667326

SEAL

12

82K236

O-RING

13

58K234

O RING 10

14

73K234

BACK-UP RING

15

6692326

SEAL, BP

16

6810539

NUT

17

7008354

SEAL, QUAD

18

7155018

BUSHING, WEAR

19

7190632

KIT, SEAL Ref. 10-12 & 15-17
