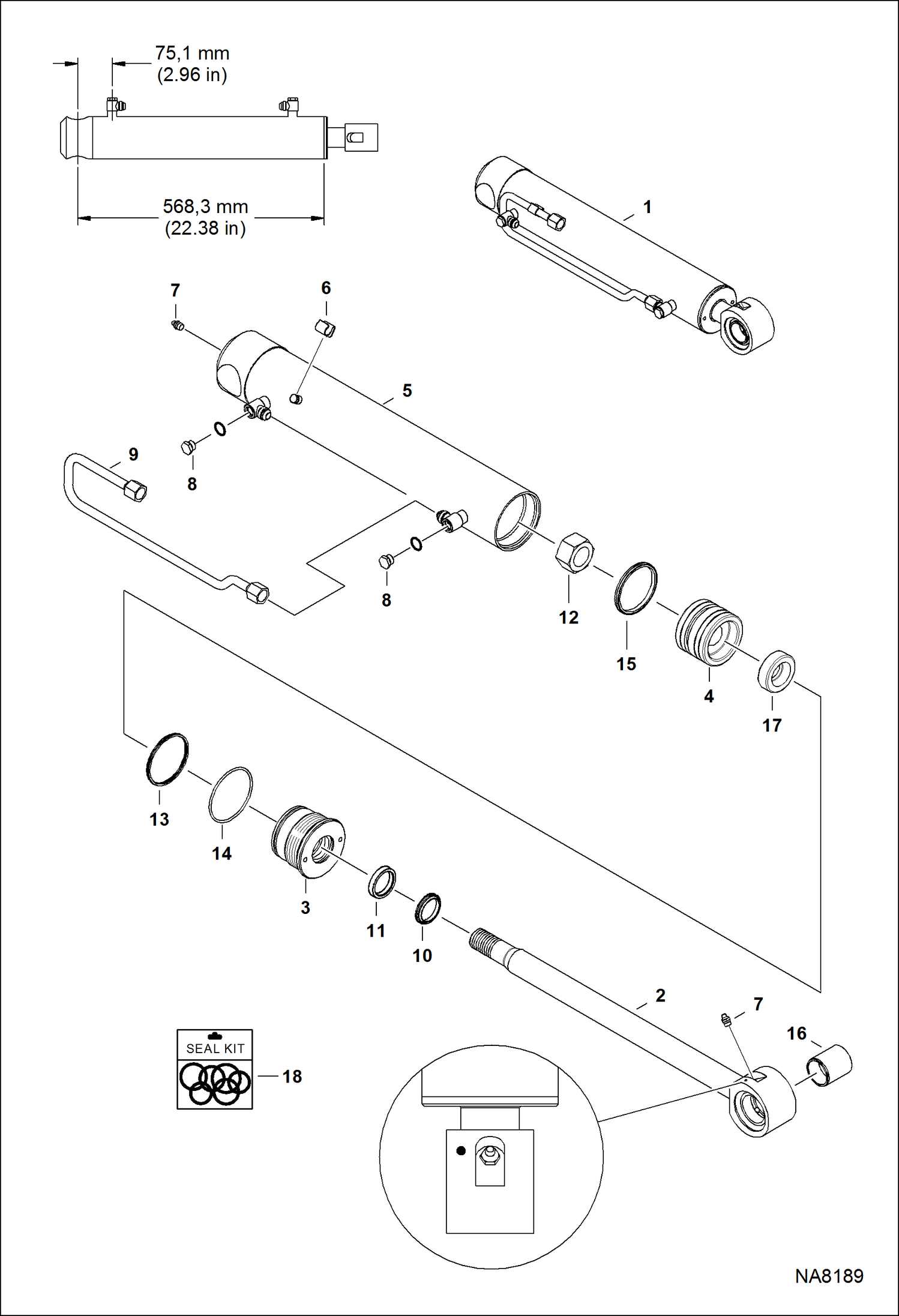

Запчасти Bobcat S-Series TILT CYLINDER (RH) (568,3 mm - 22.38 Case Tube Length) (W/Piston Collar) (W/Round machined ID mark) HYDRAULIC SYSTEM

1

7236392

CYLINDER, TILT Ref. 2-17 - before ordering repair parts, make sure that this is the correct style cylinder - note the length shown on the drawing page

2

7236323

SHAFT, ROD CYL TILT

3

7202407

HEAD, CYL TILT

4

7236325

PISTON, CYL TILT

5

7202404

TUBE, CASE CYL

6

6690911

CLAMP

7

10H25

FITTING, GREASE 5

8

6812171

PLUG

9

7138359

TUBELINE, HYD

10

6690707

WIPER, ROD CYL

11

6667326

SEAL

12

6810540

NUT

13

7008354

SEAL, QUAD

14

82K236

O-RING

15

6692326

SEAL, BP

16

7155018

BUSHING, WEAR

17

7230901

COLLAR

18

7190632

KIT, SEAL Ref. 10-15
