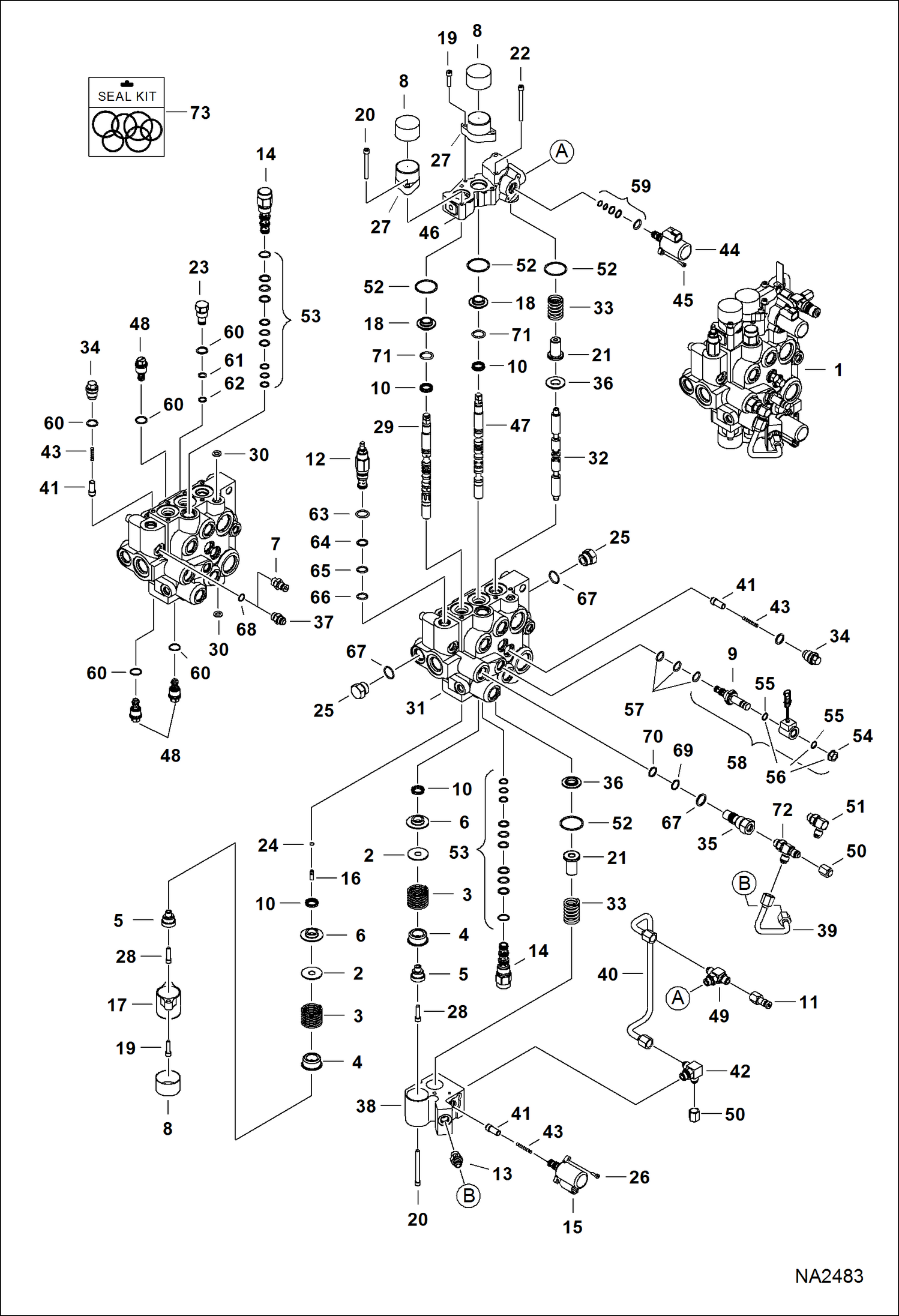

Запчасти Bobcat S-Series HYDRAULIC CONTROL VALVE (AHC, ACS & SJC) (Two Piece Detent Block) HYDRAULIC SYSTEM

1

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA6524 - NLA - Ref. 2-70 - Was 7177866 - A

2

7211397

WASHER, SPRING Was 6587523 - A

3

6587580

SPRING

4

6592100

COLLAR

5

6592109

ADAPTER

6

6595663

BUSHING

7

6630168

COUPLER

8

6662848

CAP

9

6667687

VALVE, STEM SOLENOID

10

6683274

SEAL, SPOOL 10

11

6684125

COUPLER

12

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

13

6688845

VALVE

14

6689739

VALVE

15

6698434

VALVE, PROPORTIONAL

16

6801167

PLUG

17

6803092

BONNET

18

7202038

BUSHING, ALIGNMENT Also Order 82K019 alignment O-ring - Was 6805102 - A

19

29G416

BOLT Was 6814021 - A

20

29G444

BOLT Was 6814022 - A

21

6814694

RETAINER

22

69G436

BOLT

23

6816549

PLUG ASSY PORT RLF

24

58K004

O-RING

25

24K7

PLUG W/Ref. 67

26

7002716

SCREW

27

7101345

BONNET, DETENT HYD VALVE

28

7102652

SCREW

29

7108242

SPOOL, TILT

30

55K204

O RING 10

31

7110322

VALVE MACHINED

32

7112383

AUX SPOOL

33

7121399

SPRING

34

7134520

PLUG

35

7134522

PLUG W/Ref. 67, 69 & 70

36

7138376

BUSHING

37

15KB0606

FITTING, HYD CONNECTOR

38

7157289

BLOCK

39

7157290

TUBELINE

40

7157291

TUBELINE

41

7166047

SEAT, CHECK VALVE

42

7166338

TEE, BOSS

43

7166339

SPRING, LOAD CHECK

44

6698434

VALVE, PROPORTIONAL

45

7002716

SCREW

46

7157293

BODY

47

7209496

SPOOL, LIFT

48

7177868

VALVE, RELIEF

49

7180987

FITTING, CROSS

50

36K5

CAP

51

17KB0606

FITTING

52

1K127

O-RING 10

53

6669734

KIT, SEAL

54

6691022

NUT

55

54K20028

O RING 10

56

6675559

COIL

57

6669732

KIT, SEAL

58

6672471

VALVE, SOLENOID

59

7008771

KIT, SEAL

60

79K8

O RING 10

61

58K013

O-RING

62

73K013

RING, BACK-UP

63

58K017

O-RING 10

64

6665569

WASHER

65

25K20016

O RING 10

66

6665570

RING

67

79K10

O RING 10

68

79K6

O RING 10

69

73K016

RING, BACK-UP

70

58K016

O-RING 10

71

82K019

O-RING alignment

72

7214512

FITTING, HYD TEE

73

7123964

KIT, SEAL COMPLETE

73

6632279

KIT, SEAL main relief - Ref. 63-66

73

6669732

KIT, SEAL solenoid valve - Ref. 57

73

6669734

KIT, SEAL pilot valve - Ref. 53

73

7008771

KIT, SEAL proportional valve - Ref. 59
