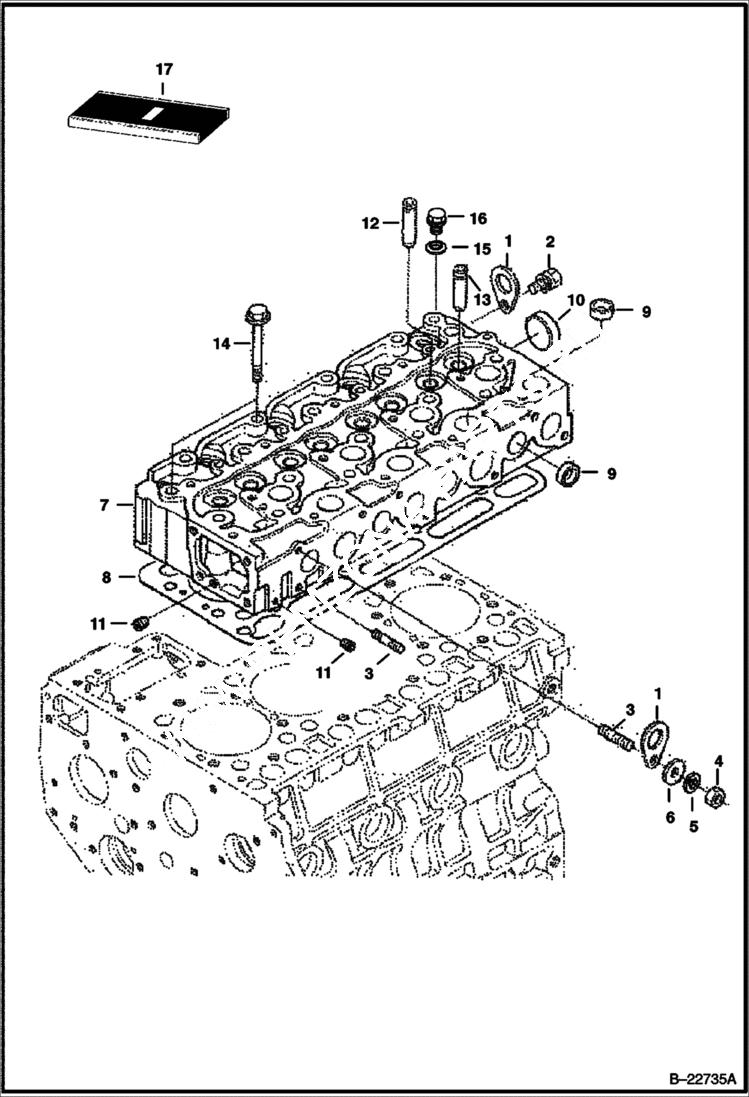

Запчасти Bobcat T-Series CYLINDER HEAD (Kubota - V2403TMDI) POWER UNIT

1

3974882

HOOK

2

6667421

BOLT

3

6598156

STUD

4

6652792

NUT

5

6667422

WASHER spring

6

1EM80

WASHER Was 2EM8 - A

7

6684755

CYLINDER HEAD cylinder - W/Ref. 9 - 13

8

6685078

GASKET cylinder head - 15

8

6685077

GASKET cylinder head - 20

8

6685079

GASKET cylinder head - 25

8

6685080

GASKET cylinder head - 30

8

6685081

GASKET cylinder head - 35

9

3974432

PLUG sealing

10

3974433

PLUG sealing

11

6598116

PLUG

12

6655154

GUIDE intake valve

13

6684756

GUIDE exhaust valve

14

6655158

BOLT

15

6655161

WASHER W/rubber

16

6655160

PLUG

17

GASKET KIT See Illustration UPPER GASKET KIT/ NA2271A UPPER
