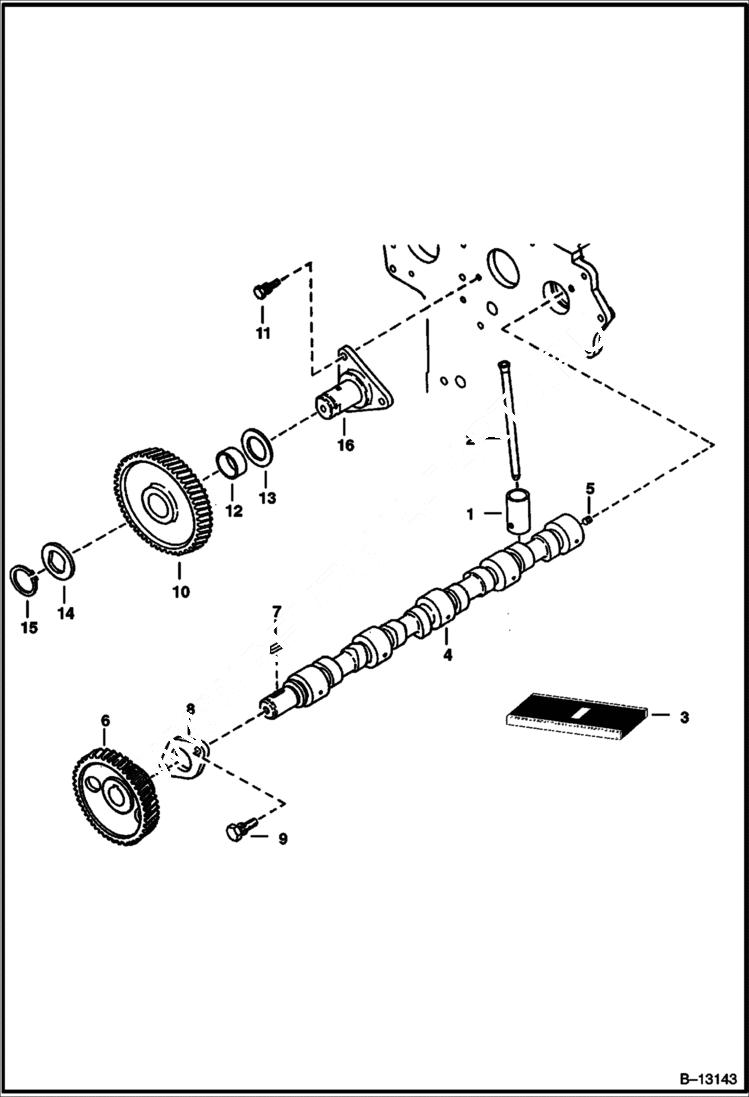

Запчасти Bobcat T-Series CAMSHAFT (Kubota - V2003T - Tier I) (S/N 5193 11001 & Abv, 5194 11001 & Abv) POWER UNIT

1

7015269

TAPPET Was 6667428 - A

2

6655176

PUSHROD

3

6675645

CAMSHAFT assy. - Ref. 4-8

4

6675646

CAMSHAFT

5

6653839

SCREW seat

6

6692387

GEAR camshaft - Was 6653840 - A

7

3974546

KEY

8

3974547

STOPPER camshaft - Was 6653843 - A

9

1CM818

BOLT Was 4CM818 - A

10

GEAR ASSY. NLA - idle - W/Ref. 12 - Order 6684793 gear, 6684795 collar, 6667433 cir-clip & 6684796 shaft - Was 6655187 - A

10

6684793

GEAR idle - W/Ref. 12

11

1CM816

BOLT Was 4CM816 - A

12

6655242

BUSHING idle gear

12

6684794

BUSHING idle gear

13

6655190

COLLAR

14

6655191

COLLAR

14

6684795

COLLAR

15

6655192

CIR-CLIP external

15

6667433

CIRCLIP external

16

6655193

SHAFT idle gear

16

6684796

SHAFT idle gear
