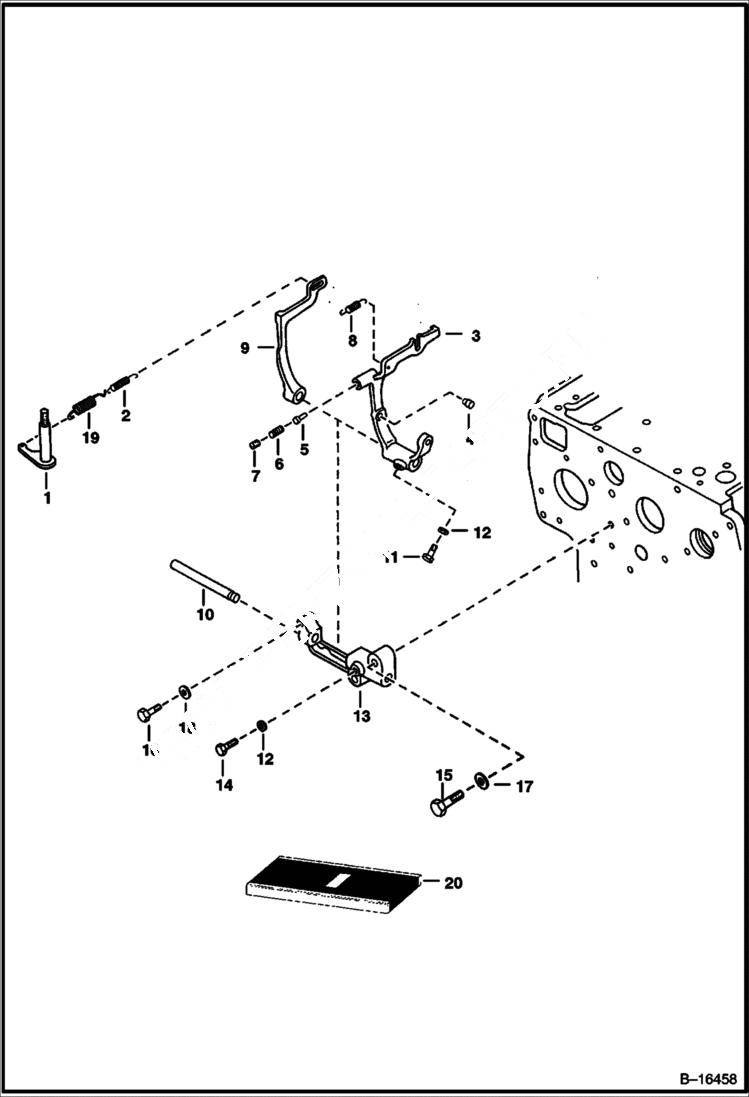

Запчасти Bobcat T-Series GOVERNOR (Kubota - V2003T - Tier I) (S/N 5193 11001 & Abv, 5194 11001 & Abv) POWER UNIT

1

6598174

LEVER governor

2

6655227

SPRING

3

6675672

LEVER fork - W/Ref. 4-7 - Was 6675657 - A

4

PIN NSS

5

PIN NSS

6

SPRING NSS

7

SCREW NSS

8

6655225

SPRING

9

6655877

LEVER

10

3974658

SHAFT

10

6684833

SHAFT

11

3974659

BOLT

11

6680830

BOLT flange head

12

6EM60

WASHER, SPRING

13

6653916

HOLDER Was 3974661B - A

14

3974662

BOLT Was 3974192 - A

15

6598355

BOLT

15

6680706

BOLT flange head

16

4CM628

BOLT

16

6685464

BOLT

17

1EM80

WASHER Was 2EM8 - A

18

1EM60

WASHER

19

6675640

SPRING governor

20

6675672

LEVER fork - Ref. 3 & 9 - 14
