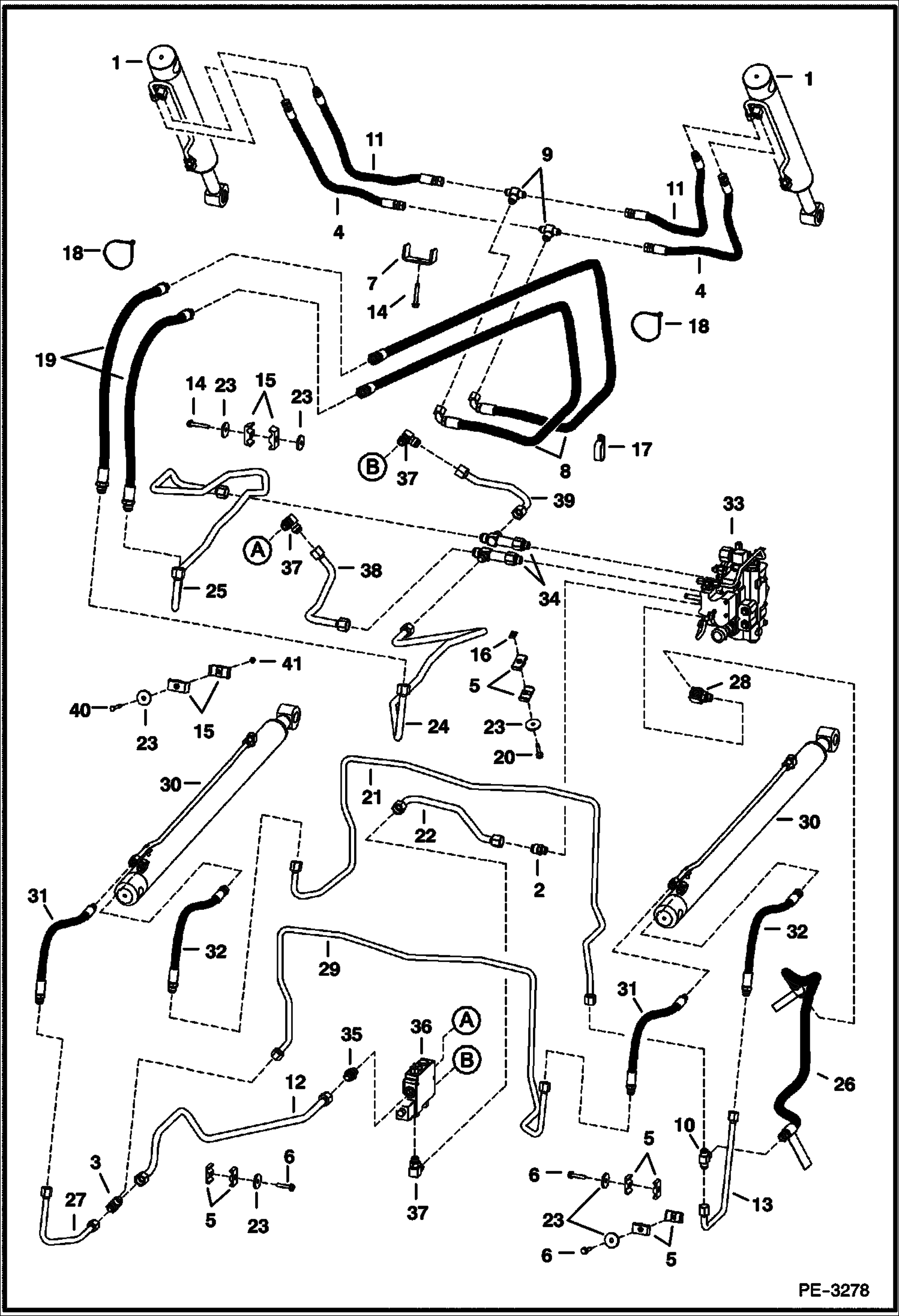

Запчасти Bobcat T-Series HYDRAULIC CIRCUITRY (W/Bucket Positioning Valve) (W/Cooling Upgrade) (S/N 531812826 & Above, 531911355 & Above) HYDRAULIC SYSTEM

1

CYLINDER See Illustration TILT CYLINDER/ PE1520 - tilt

2

15KB1210

FITTING, HYD CONNECTOR

2

79K10

O RING 10

3

6729686

TEE

4

7102090

HOSE

5

6701893

CLAMP

6

84G3732

BOLT

7

6735796

CLAMP

8

6736353

HOSE

9

6716061

TEE

10

6729694

TEE

11

7102089

HOSE

12

7114823

TUBELINE

13

7126937

TUBELINE

14

84G3740

BOLT

15

6592506

CLAMP

16

6684033

NUT retaining

17

31H49

CLAMP

18

6624289

STRAP, TIE

19

6736352

HOSE

20

84G3728

BOLT

21

7126874

TUBELINE lift

22

6732992

TUBELINE lift

23

872229

WASHER

24

7126515

TUBELINE tilt

25

7126516

TUBELINE tilt

26

6729604

HOSE available only as an assembly W/two danger decals installed

26

6809511

DECAL, DANGER

26

79K10

O RING 10

27

7114820

TUBELINE lift

28

7109623

ELBOW Was 6817335 - A

28

79K10

O RING 10

29

7126873

TUBELINE lift

30

CYLINDER See Illustration LIFT CYLINDER/ PE2016 - lift

31

7100626

HOSE

32

7100627

HOSE

33

VALVE See Illustration HYDRAULIC CONTROL VALVE/ PE2379 See Illustration HYDRAULIC CONTROL VALVE/ PE2378 - control

34

6730914

TEE

34

79K10

O RING 10

35

15KB1210

FITTING, HYD CONNECTOR

35

79K10

O RING 10

36

VALVE See Illustration BUCKET POSITIONING KIT/ PE2364 See Illustration BUCKET POSITIONING VALVE/ MS1943 - BPV

37

17KB1210

FITTING, HYD ELBOW

37

79K10

O RING 10

38

6732991

TUBELINE

39

7108458

TUBELINE

40

1CM540

BOLT

41

59D5

NUT 5
