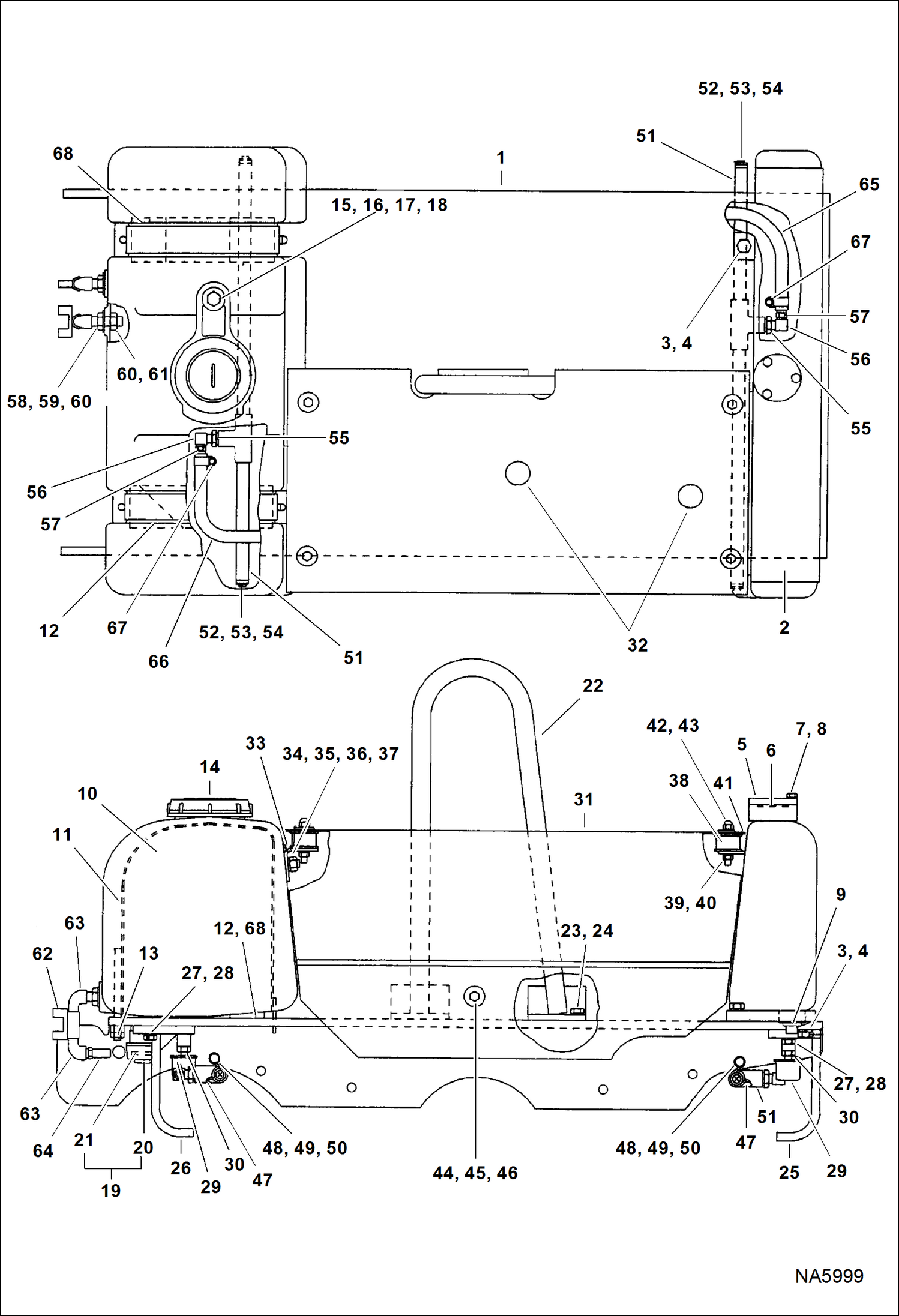

Запчасти Bobcat DOUBLE DRUM ROLLER OIL TANK & WATER TANK MAIN FRAME

1

7030521

MOUNT, TANK

2

7030550

TANK, OIL

3

7031128

BOLT

4

7031130

WASHER, SPRING

5

7030551

CAP, OIL HYD

6

7031118

O-RING

7

7031141

BOLT

8

7031135

WASHER, SPRING

9

7030552

PLUG

10

7030553

TANK, WATER

11

7030554

STRAP water tank

12

7030577

PLATE, SET tank (B)

13

7030555

NUT

14

7030556

CAP water tank

15

7030557

BOLT

16

7030766

GASKET

17

7031074

WASHER

18

7030558

NUT, CAP

19

7030559

CAP drain - W/Ref. 20 & 21

20

DRAIN CAP NSS - Order Ref. 19

21

7030561

GASKET

22

7030562

HOOK lifting

23

7031069

BOLT

24

7031066

WASHER, SPRING

25

7030518

PLATE stopper (A)

26

7030519

PLATE stopper (B)

27

7031069

BOLT

28

7031066

WASHER, SPRING

29

7030563

BUMPER, RUBBER

30

7030760

NUT

31

7030526

COVER (A)

32

7030564

CAP

33

7030565

BRACKET

34

7030566

BOLT

35

7030766

GASKET

36

7031131

NUT

37

7031130

WASHER, SPRING

38

7031148

MOUNT, RUBBER

39

7031145

NUT

40

7031135

WASHER, SPRING

41

7031153

WASHER

42

7030567

NUT, CAP

43

7031135

WASHER, SPRING

44

7031141

BOLT

45

7031135

WASHER, SPRING

46

7031153

WASHER

47

7030568

HOLDER sprinkler pipe

48

7031141

BOLT

49

7031135

WASHER, SPRING

50

7030569

WASHER

51

7030525

PIPE, WATER sprinkler

52

7031138

PLUG rubber

53

7031184

BOLT

54

7031185

WASHER

55

7030570

BUSHING

56

7031067

FITTING, ELBOW

57

7030571

JOINT, HOSE

58

7030764

JOINT, ASSY

59

7030572

WASHER

60

7030766

GASKET

61

7030765

NUT

62

7030573

VALVE sprinkler

63

7030574

FITTING, ELBOW

64

7030571

JOINT, HOSE

65

7030575

HOSE HYD ASSY

66

7030494

HOSE HYD ASSY

67

7031137

BAND, HOSE

68

7030576

PLATE, SET tank (A)
