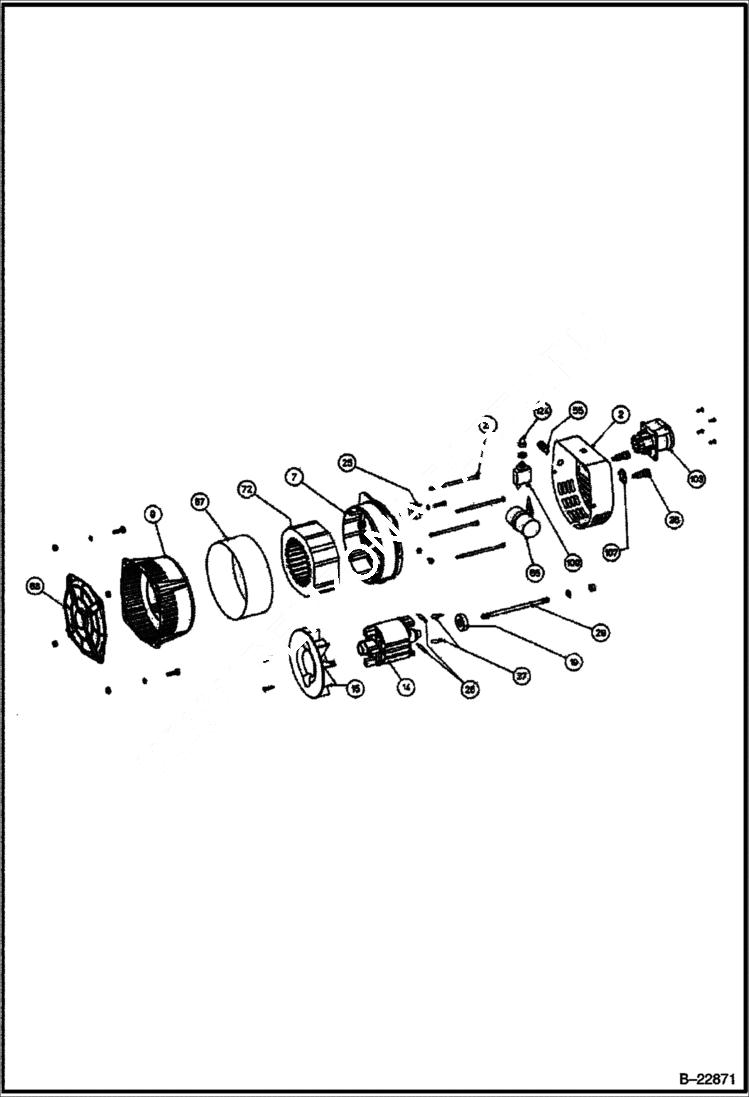

Запчасти Bobcat GENERATOR ALTERNATOR (BGT) BGT

2

COVER NSS

7

BRACKET NSS - non drive end

9

BRACKET NSS - drive end

14

ROTOR ASSY NSS

15

FAN NSS

19

IR16533770

REAR BEARING rear

25

RECTIFIER NSS - bridge

26

IR16533788

DIODE

27

IR16533796

VARISTOR

28

BOLT NSS

29

STUD NSS

36

SCREW NSS

55

CONNECTOR NSS

65

IR16533804

CAPACITOR

67

BAND NSS - enclosing

68

FLANGE NSS - interchangeable

72

STATOR NSS

103

N/A NSS

107

CAP NSS - rubber

109

BREAKER NSS

124

CAP NSS - rubber
