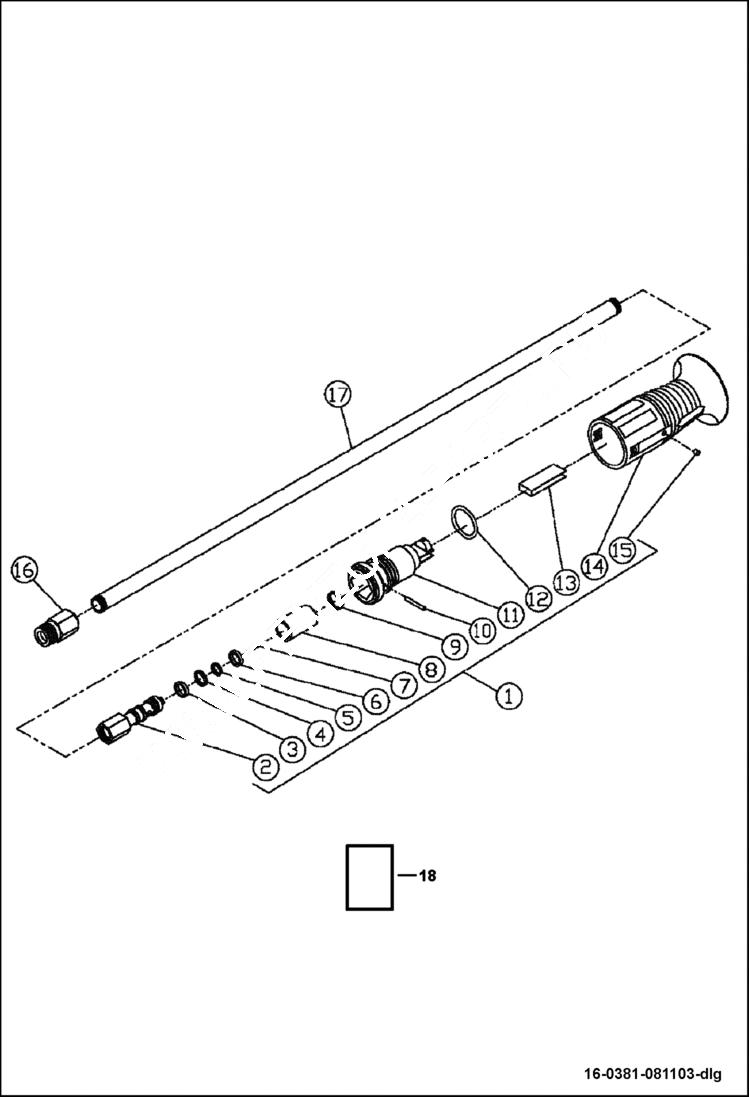

Запчасти Bobcat PRESSURE WASHER LANCE ASSEMBLY EQUIPMENT

1

MM18-0274

NOZZLE ASSEMBLY Ref. 2-15

2

MM18-0284

NOZZLE BODY

3

MM25-0346

BACK-UP RING

4

MM25-0345

O-RING

5

MM25-0343

O-RING

6

MM25-0344

BACK-UP RING

7

MM18-0351

NOZZLE - 1.15 MM

8

SLEEVE NLA - Order Ref. 1

9

MM25-0419

O-RING

10

MM43-0083

PIN

11

PLASTIC HOUSING NLA - Order Ref. 1

12

MM25-0342

O-RING

13

MM18-0283

ANGLE PLATE

14

MM18-0353

NOZZLE PROTECTOR

15

MM18-0352

I.D. PIN

16

MM16-0378

COUPLING

17

MM16-0379

PIPE

18

MM70-0303

REPAIR KIT (INC. 4-6, 13) Ref. 4-6 & 13
