DETERGENT INJECTOR

Запчасти Bobcat PRESSURE WASHER DETERGENT INJECTOR EQUIPMENT

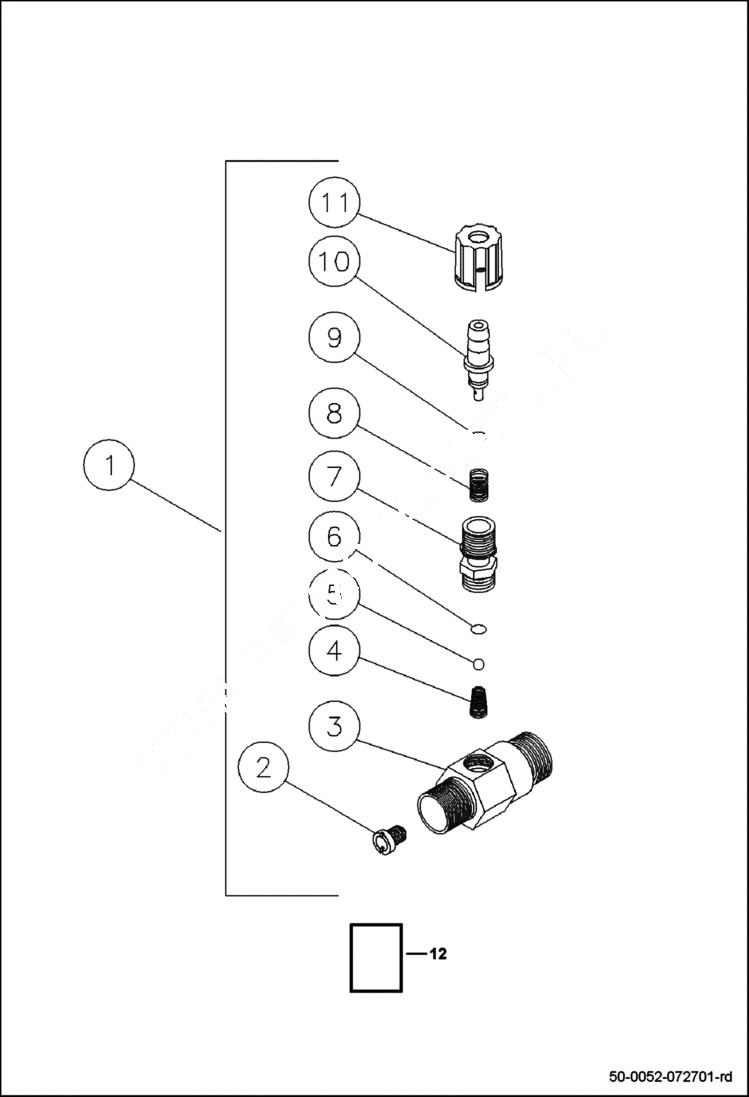

Схема запчастей Bobcat PRESSURE WASHER - DETERGENT INJECTOR EQUIPMENT
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MM50-0052

ADJ. CHEM. INJ. 2.1 ORIFICE Ref. 2-11

2

MM50-0057

Orifice (2.1mm)

3

Injector Body - NLA -

4

SPRING NLA - Order Ref. 12

5

BALL NLA - Order Ref. 12

6

O-RING NLA - Order Ref. 12

7

MM50-0156

Piston Retainer

8

MM49-0056

Spring

9

O-RING NLA - Order Ref. 12

10

MM50-0157

Adjustable Shutter Barb

11

MM50-0158

Adjustment Knob

12

MM852-0056

Injector Repair Kit (Includes 4-6, 8) Ref. 4-6 & 8
