HONDA ENGINE (Crankcase Cover)

Запчасти Bobcat UPRIGHT RAMMER HONDA ENGINE (Crankcase Cover) POWER UNIT

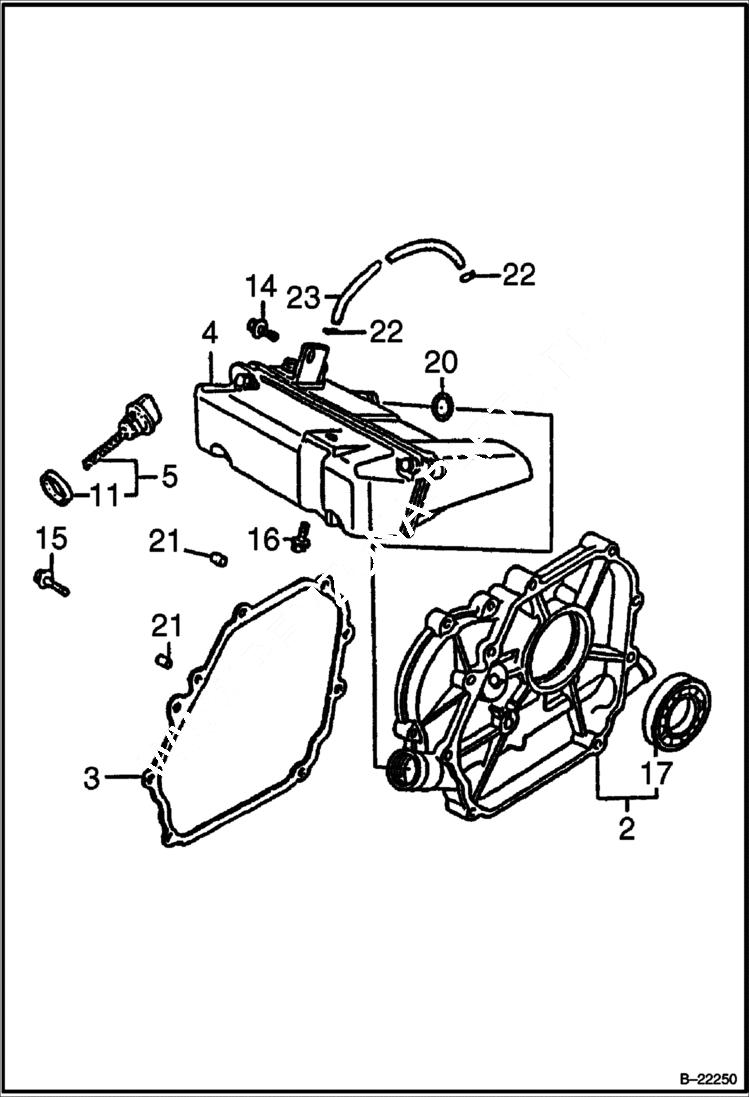

Схема запчастей Bobcat UPRIGHT RAMMER - HONDA ENGINE (Crankcase Cover) POWER UNIT
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

IR59243659

COVER W/Ref 17 crankcase

3

IR59243667

PACKING

4

IR59243675

OIL TANK

5

IR59243683

CAP ASSY W/Ref 11 oil filler

11

IR59243691

PACKING

14

IR59243709

FLANGE BOLT

15

IR59243717

FLANGE BOLT

16

IR59243725

FLANGE BOLT

17

IR59243618

BEARING

20

IR59243733

O-RING

21

IR59243741

DOWEL PIN

22

IR59243758

TUBE CLIP

23

IR59243766

TUBE
