HONDA ENGINE (Fan Shroud) (S/N OB6041 & Above)

Запчасти Bobcat VIBRATORY PLATE COMPACTOR HONDA ENGINE (Fan Shroud) (S/N OB6041 & Above) POWER UNIT

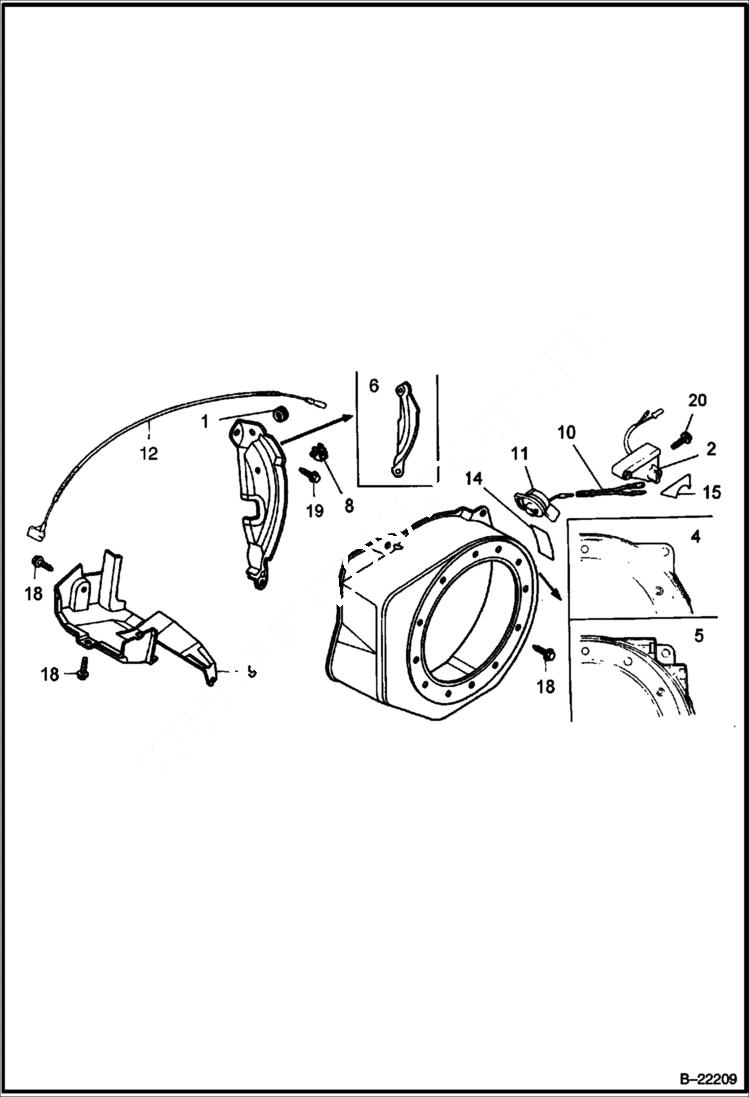

Схема запчастей Bobcat VIBRATORY PLATE COMPACTOR - HONDA ENGINE (Fan Shroud) (S/N OB6041 & Above) POWER UNIT
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

IR59244111

GROMMET cover adjustment

2

IR54474697

OIL ALERT UNIT

4

IR13221130

FAN COVER

5

IR13221148

FAN COVER

6

IR13221155

SIDE PLATE

8

IR54474804

CLAMP stop switch cord

9

IR13221163

SHROUD

10

IR54474820

HARNESS engine stop switch

11

IR59244145

STOP SWITCH engine

12

IR59244152

CORD stop switch

14

IR13221171

LABEL Specification

15

IR54474846

LABEL Oil Alert

18

IR59242990

FLANGE BOLT

19

IR59244764

FLANGE BOLT

20

IR59244103

FLANGE BOLT
