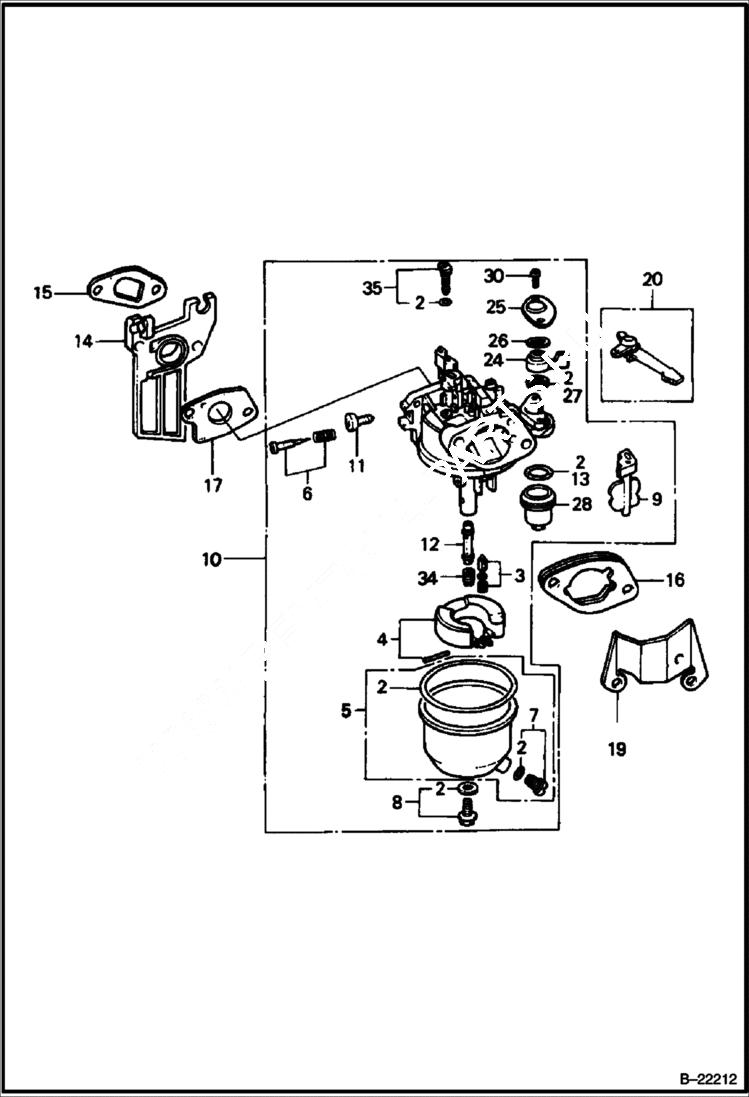

Запчасти Bobcat VIBRATORY PLATE COMPACTOR HONDA ENGINE (Carburetor) (S/N OB6041 & Above) POWER UNIT

2

IR54475108

GASKET SET

3

IR59244186

FLOAT VALVE SET

4

IR13221239

FLOAT SET

5

IR13221247

CHAMBER SET float - Includes Ref. 7

6

IR59244210

SCREW SET pilot

7

IR59244228

SCREW SET drain - Includes gasket

8

IR59244236

SCREW SET Includes gasket

9

IR59244244

CHOKE SET

10

IR13221254

CARBURETOR assembly - Includes Ref. 3-6, 8, 9, 11-13, 24-28, 30, 34 & 35

10

IR13221254

CARBURETOR Assy - Includes Ref. 3-6, 8, 9, 11-13, 24-28, 30, 34 & 35 - Was IR13221262 - A

11

IR54475140

STOP SCREW throttle

12

IR13221270

MAIN NOZZLE

12

IR13221288

MAIN NOZZLE

13

IR54475181

PACKING fuel strainer cup

14

IR59244269

INSULATOR carburetor

15

IR54475215

PACKING

15

IR54475207

PACKING

16

IR59244285

SPACER carburetor

17

IR54475249

PACKING

17

IR54475223

PACKING

19

IR54475264

BRACKET choke control stay

19

IR13221296

CHOKE CONTROL stay

20

IR59244301

CHOKE LEVER complete

24

IR54475280

COCK LEVER

25

IR54475330

PLATE lever setting

26

IR54475348

LEVER SPRING

27

IR54475314

PACKING

28

IR54475355

STRAINER CUP fuel

30

IR54475363

PAN SCREW

34

IR59244319

MAIN JET Includes gasket

34

IR13221304

MAIN JET Includes gasket

35

IR59244327

PILOT JET SET Includes Ref. 2
