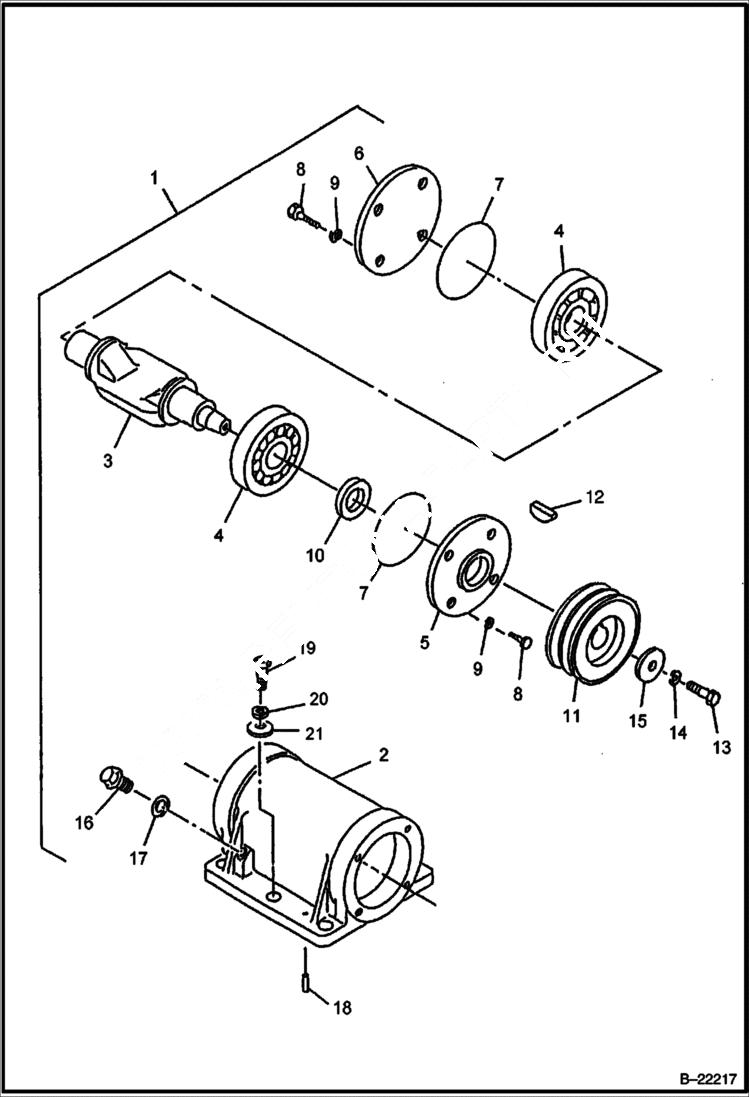

Запчасти Bobcat VIBRATORY PLATE COMPACTOR VIBRATION ASSEMBLY MAIN FRAME

1

IR59831438

VIBRATION ASSY Ref. 2-21

2

IR59831420

SHAFT CASE

3

IR59839118

SHAFT eccentric

4

IR59839134

BALL BEARING

5

IR59831446

CASE COVER A

6

IR59831453

CASE COVER B

7

IR59831479

O-RING

8

IR59952325

BOLT

9

IR59831925

SPRING WASHER

10

IR59839142

OIL SEAL

11

IR59831461

PULLEY

12

IR59843714

WOODRUFF KEY

13

IR59832287

BOLT

14

IR59951632

SPRING WASHER Was IR59510065 - A

15

IR59843656

WASHER

16

IR59831123

PLUG

17

IR59831131

PACKING

18

IR59831164

SPRING PIN

19

IR59839019

BOLT

20

IR59832618

SPRING WASHER

21

IR58837717

WASHER
