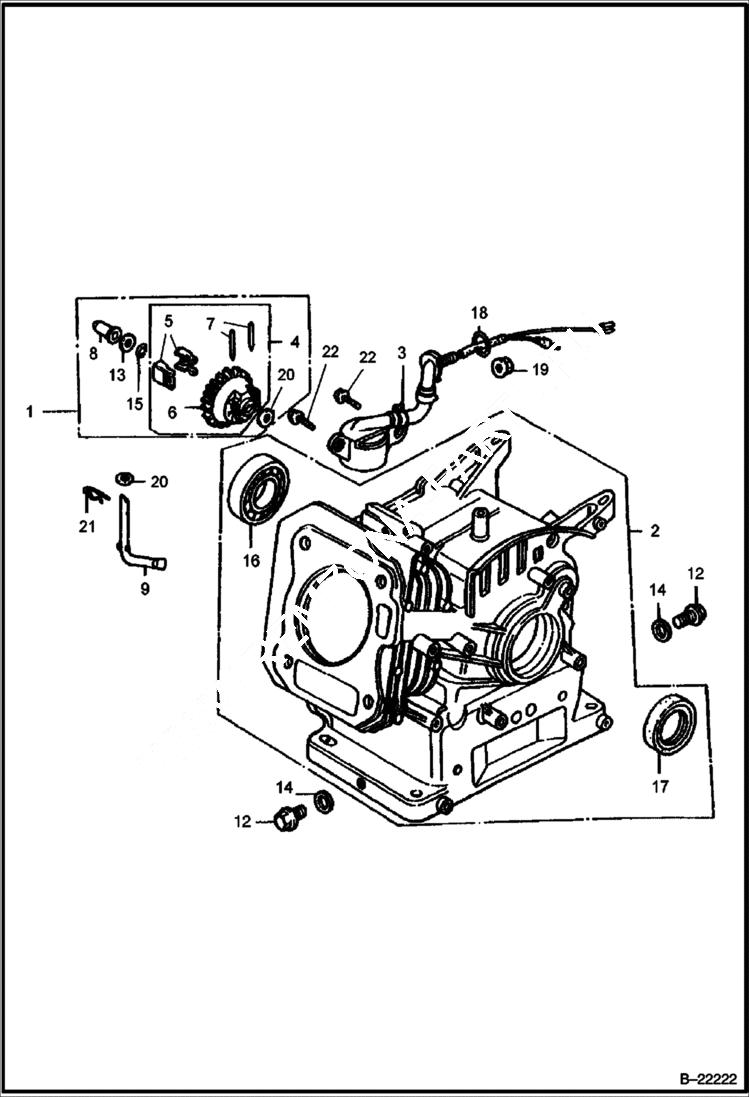

Запчасти Bobcat VIBRATORY PLATE COMPACTOR HONDA ENGINE (Governor) POWER UNIT

1

IR59243295

GOVERNOR KIT Ref. 4, 8, 13, 15 & 20

2

IR54474143

BARREL ASSY Ref 17 Ref 18 cylinder

3

IR54474176

SWITCH ASSY oil level

3

IR54474168

SWITCH ASSY oil level

4

IR59243311

GOVERNOR W/Ref 5 W/Ref 6 W/Ref 7

5

IR59243329

WEIGHT

6

IR59243337

WEIGHT HOLDER

7

IR59243345

WEIGHT PIN

8

IR59243352

SLIDER

9

IR59243360

ARM SHAFT

12

IR59243378

DRAIN PLUG

13

IR59243386

THRUST WASHER

14

IR59243394

CLIP

15

IR59243600

CLIP

16

IR54474184

BEARING 6205TMB

16

IR54474192

BEARING 6205SH

17

IR54474200

OIL SEAL

18

IR54474226

O-RING

19

IR54474234

FLANGE NUT

20

IR59243634

WASHER

21

IR59243642

LOCK PIN

22

IR54474259

FLANGE BOLT
