ENGINE (Crankcase Cover) BC19, BC22

Запчасти Bobcat VIBRATORY PLATE COMPACTOR ENGINE (Crankcase Cover) BC19, BC22 POWER UNIT

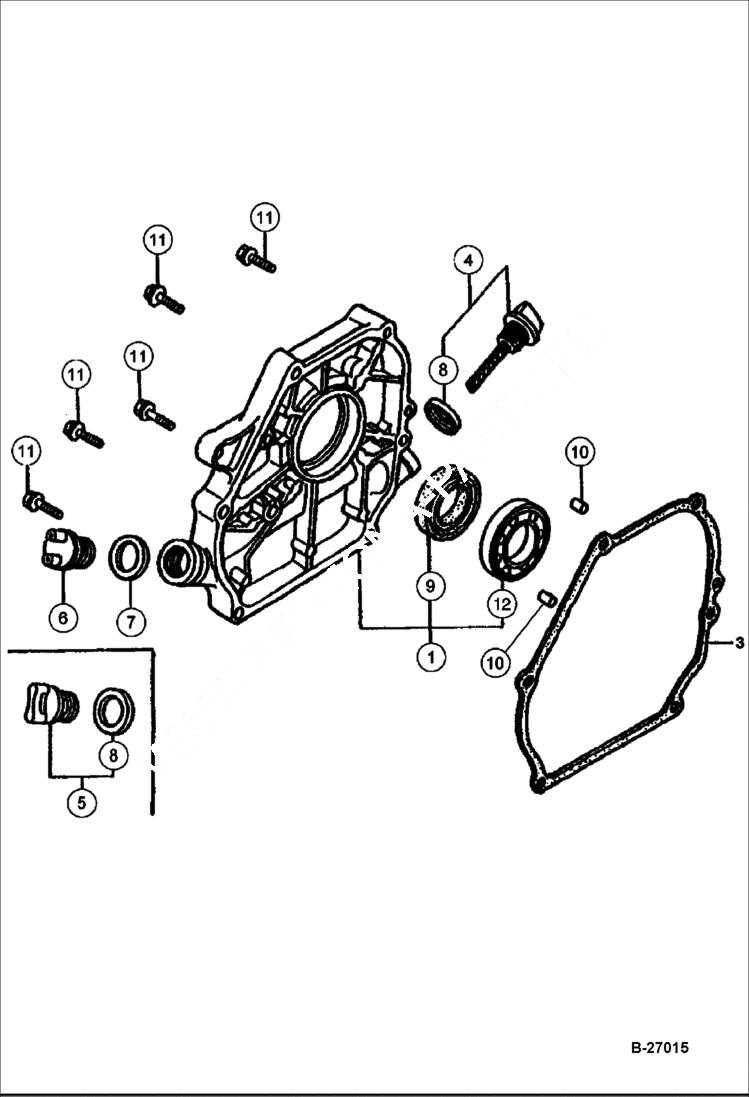

Схема запчастей Bobcat VIBRATORY PLATE COMPACTOR - ENGINE (Crankcase Cover) BC19, BC22 POWER UNIT
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

IR54474275

COVER W/Ref. 9 & 12

3

IR54474291

PACKING

4

IR59243683

CAP ASSY W/Ref. 8

5

IR54474317

CAP ASSY W/Ref. 8

6

IR54474325

OIL FILLER CAP

7

IR54474333

PACKING

8

IR59243691

PACKING

9

OIL SEAL NLA - Was IR54474358 - A

10

IR54474366

DOWEL PIN

11

IR54474374

FLANGE BOLT

12

IR54474382

BEARING
