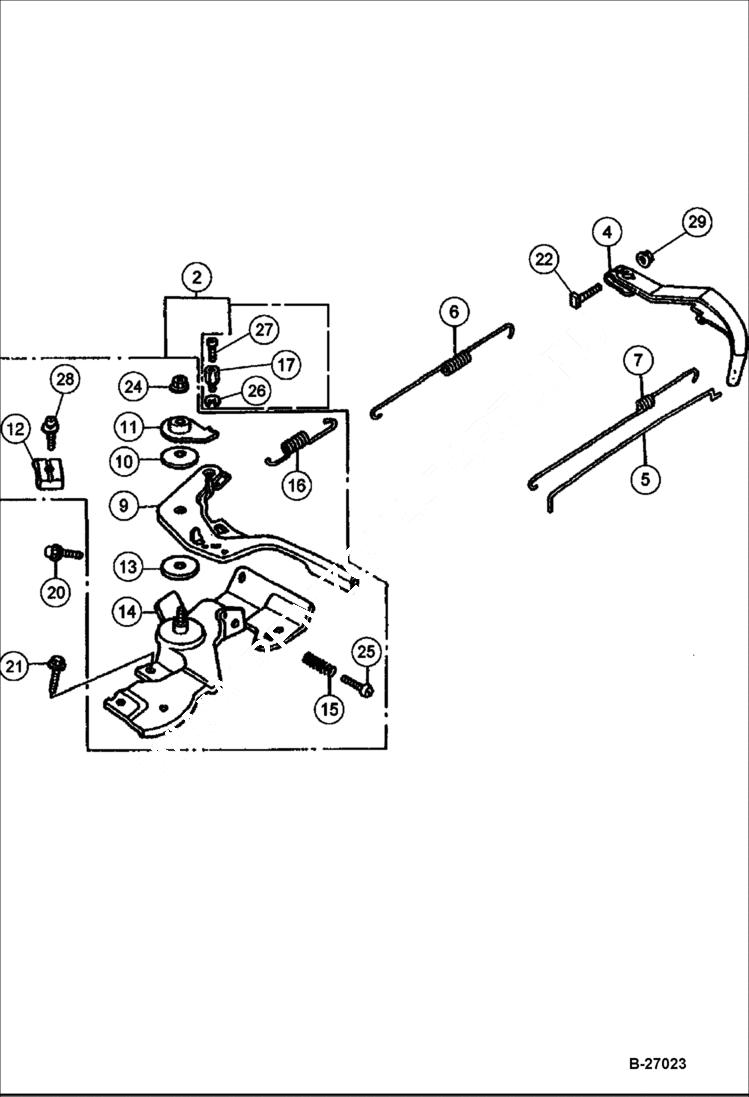

Запчасти Bobcat VIBRATORY PLATE COMPACTOR ENGINE (Control Assy) BC19, BC22 POWER UNIT

2

IR54474911

CONTROL ASSY Ref. 9-17 & 24-28

4

IR54474929

ARM

5

IR54474937

ROD

6

IR54474945

SPRING

7

IR54474952

SPRING

9

IR54474960

CONTROL LEVER

10

IR59244723

LEVER SPRING

11

IR54474978

LEVER WASHER

12

IR54474986

CABLE HOLDER

13

IR54474994

SPACER

14

IR54475017

CONTROL BASE

15

IR59244731

SPRING

16

IR59244749

RETURN SPRING

17

IR54475025

WIRE HOLDER

20

IR54475033

RECESSED BOLT

21

IR59244756

FLANGE BOLT

22

IR59244772

ARM BOLT

24

IR54475041

LOCKNUT

25

IR54475058

PAN SCREW

26

IR54475066

CIRCLIP

27

IR54475074

PAN SCREW

28

IR54475090

PAN SCREW

29

IR59244780

FLANGE NUT
