GOVERNOR

Запчасти Bobcat 6KW GOVERNOR MAIN FRAME

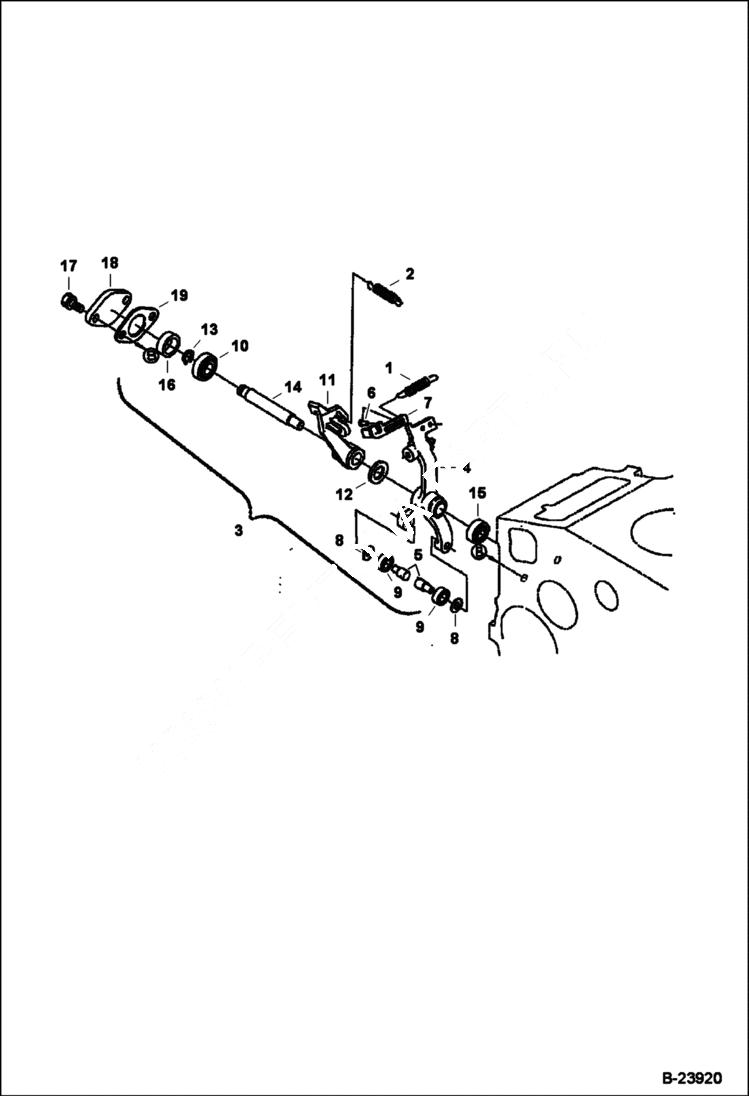

Схема запчастей Bobcat 6KW - GOVERNOR MAIN FRAME
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6680500

SPRING

2

6681686

SPRING

3

6681687

LEVER ASSEMBLY W/Ref. 4-14

4

6681688

LEVER ASSEMBLY W/Ref. 5-9

5

PIN NSS - Order Ref. 4

6

BOLT NSS - Order Ref. 4

7

BRACKET NSS - Order Ref. 4

8

6681691

WASHER

9

6681690

BEARING

10

6657575

BEARING

11

6681692

LEVER

12

6657595

WASHER

13

6657419

WASHER

14

6657570

SHAFT

15

6657576

BEARING

16

6657572

COLLAR

17

1CM614

SCREW Was 4CM614 - A

18

6698616

COVER, SHAFT Was 6657573 - A

19

6672401

GASKET
