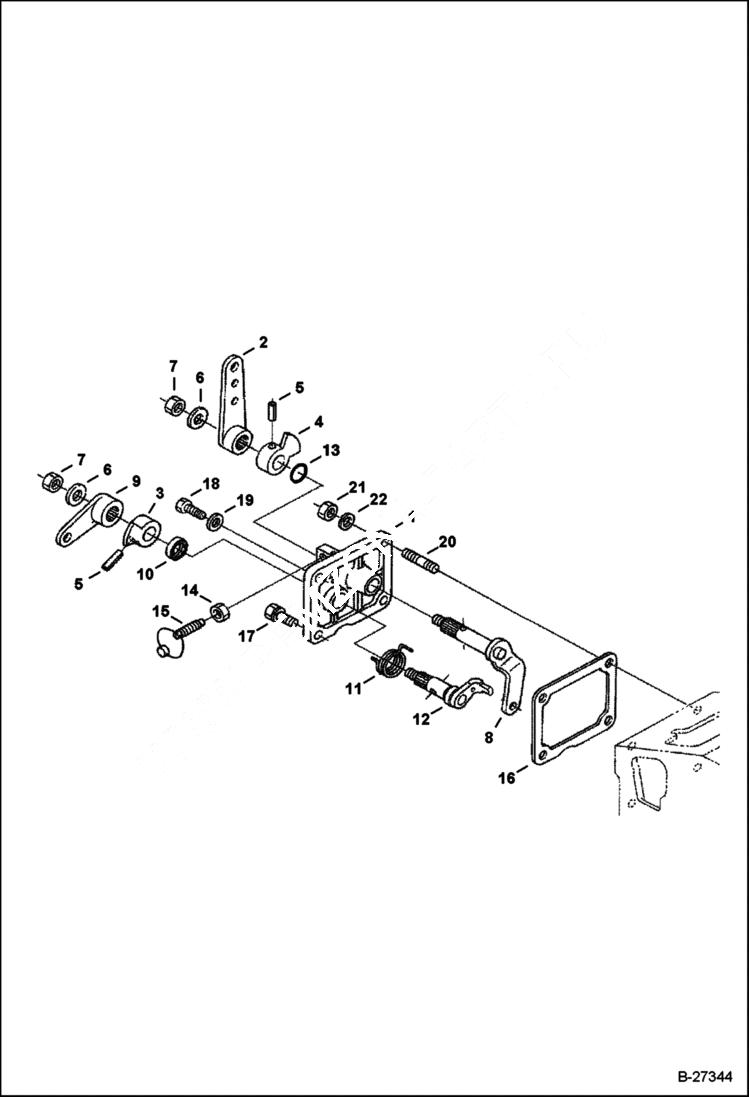

Запчасти Bobcat 6KW SPEED CONTROL PLATE MAIN FRAME

1

6681693

ASSEMBLY PLATE W/Ref. 2-12

2

6657655

LEVER

3

6657577

LEVER

4

6681695

LEVER ASSEMBLY

5

6598098

PIN

6

6657596

WASHER

7

6657592

NUT

8

6681695

LEVER ASSEMBLY

9

6657656

LEVER

10

6598703

SEAL

11

6657474

SPRING

12

6657657

SHAFT

13

6680277

O-RING

14

NUT NSS - Order Ref. 1

15

BOLT, ADJUSTING NSS - Order Ref. 1 - W/security wire

16

6657578

GASKET

17

1CM616

SCREW Was 4CM616 - A

18

4CM618

BOLT

19

3974972

GASKET

20

6680264

STUD

21

1DM6

NUT

22

6667419

WASHER
