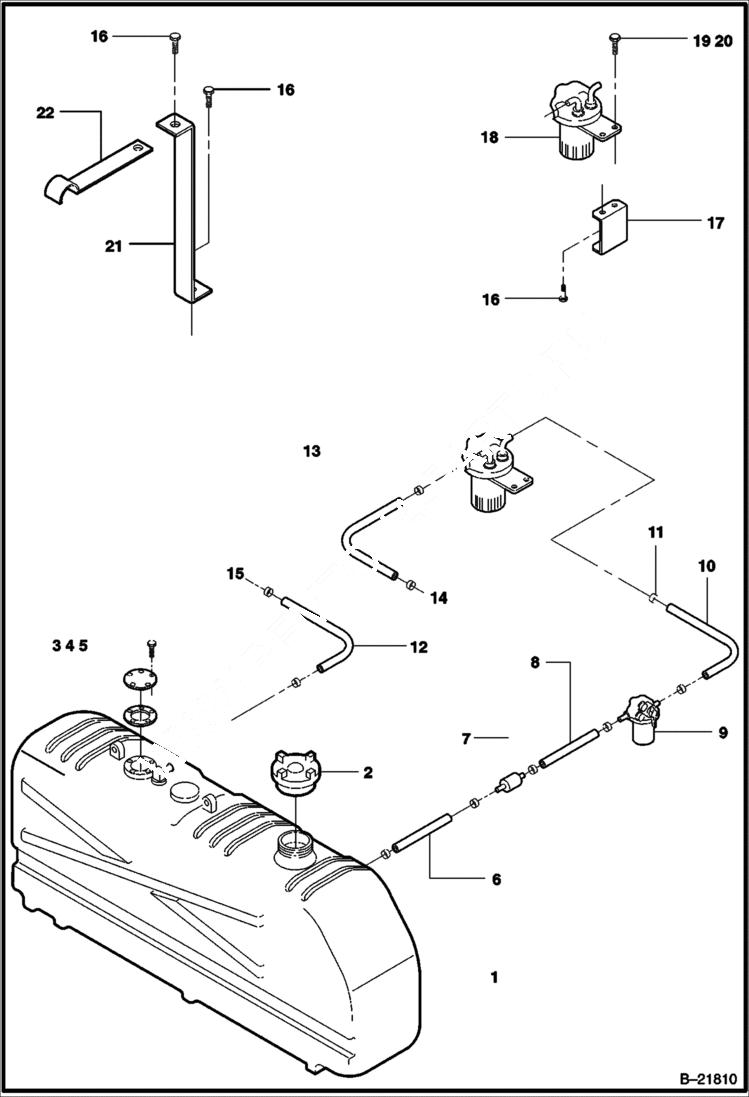

Запчасти Bobcat 6KW FUEL TANK MOUNTING AND PIPING (CONT) MAIN FRAME

1

IR36859031

TANK Fuel

2

IR36859049

CAP Fuel Tank

2

IR35385111

GASKET Was IR35388511 - A

3

IR95933446

SCREW

4

IR36792828

COVER

5

IR35361849

GASKET

6

IR35363498

HOSE 4''

7

IR36845493

FILTER Inline

8

IR35363498

HOSE 6''

9

IR35363498

HOSE Engine Injector Pump

10

IR35363498

HOSE 21''

11

IR35296342

CLAMP

12

IR35282078

HOSE 20''

13

IR35363498

HOSE 15''

14

IR35363498

HOSE To Engine

15

IR35363498

HOSE From Engine Return

16

IR35279025

SCREW

17

IR36923274

BRACKET Filter

18

IR36870566

FILTER Engine Fuel

19

IR36889608

SCREW

20

IR36881886

NUT

21

IR36923118

STRAP Vertical

22

IR36923126

STRAP Top

22

IR35384585

FUEL TANK PIPE Assembly (Not Illustrated)

22

IR35384577

BUSHING Not Illustrated

22

IR35384593

ELBOW Barbed (Not Illustrated)
