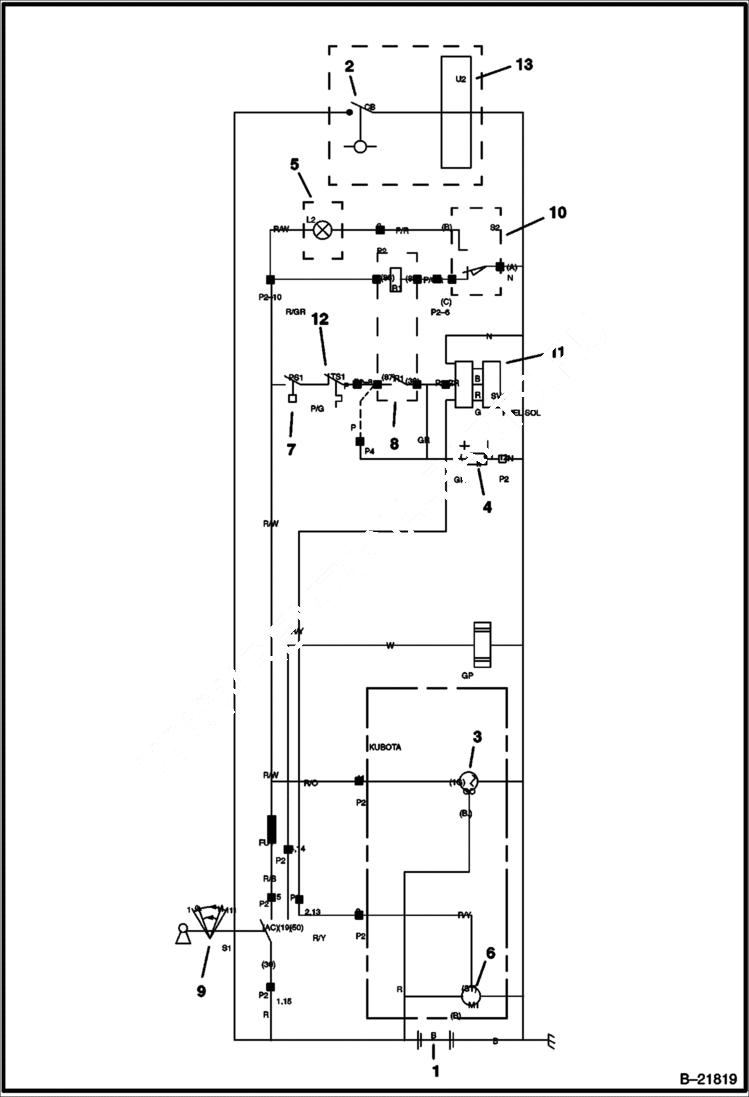

Запчасти Bobcat 6KW WIRING SCHEMATIC - ENGINE MAIN FRAME

1

IR36844967

BATTERY

2

IR368504042

CIRCUIT BREAKER Winch

3

6988711

ALTERNATOR Was IR36888170 - A

4

IR36841245

HOURMETER

5

IR36883825

LAMP Low Fuel - Optional

6

IR36888188

STARTER

7

IR36878379

SWITCH Oil Pressure

8

IR36878361

RELAY Fuel Shutdown

9

IR36786457

SWITCH Main

10

IR54414669

SWITCH Low Fuel - Optional

11

IR44004539

SOLENOID KIT Fuel - Was IR36878189 - A

12

IR36868479

SWITCH Water Temperature

13

IR36878056

WINCH Electric

13

IR54364856

HARNESS Engine Wiring

13

IR54364864

HARNESS Control Panel
