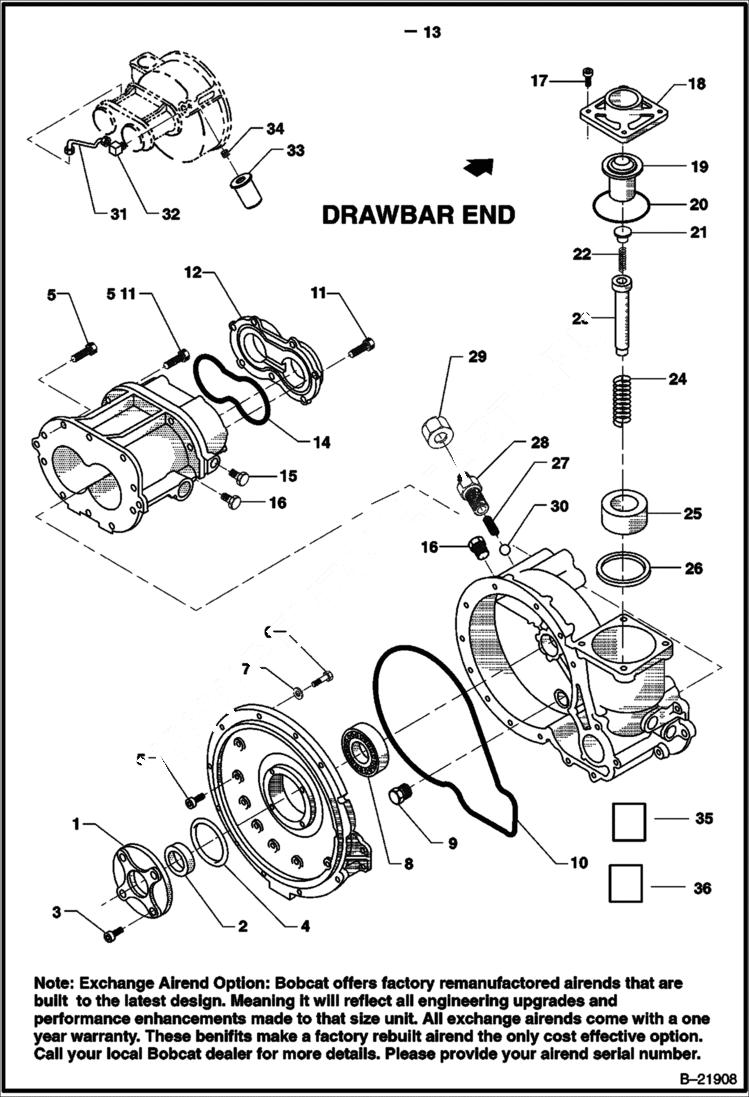

Запчасти Bobcat BAP185 AIREND ASSEMBLY MAIN FRAME

1

IR36506772

SEAL COVER

2

IR35375369

SEAL

3

IR35611961

SCREW

4

IR95022331

O-RING

5

IR119M2A221

SCREW

6

IR36791689

SCREW

7

IR95094306

WASHER

8

IR35286004

BEARING

9

IR39101449

PLUG

10

IR95641734

O-RING

11

IR35612134

SCREW

12

IR36506442

BEARING COVER

13

IR35611953

SCREW

14

IR95023115

O-RING

15

IR35289057

PLUG

16

IR35287556

PLUG

17

IR35287655

SCREW

18

IR36508471

INLET COVER

19

IR36511623

UNLOADER VALVE

20

IR95023107

20A11EM156 O-RING Was IR90523107 - D

21

IR35379817

SPRING CAP

22

IR35376342

SPRING

23

IR35611557

STEM

24

IR35376334

SPRING

25

IR35611615

PISTON

26

IR35376359

SEAL

27

IR35376326

SPRING

28

IR35612175

CONNECTOR

29

IR95257333

CAP

30

IR35376318

BALL

31

IR36764553

TUBE ASSY

32

IR35286491

ELBOW

33

IR36897353

FILTER ELEMENT

34

IR35372986

NIPPLE

35

IR36007854

AIREND New P-185 Airend Assy - See Note

36

IR36007870

AIREND New P-185 Calif. Re-Rate AirEnd Assy - See Note
