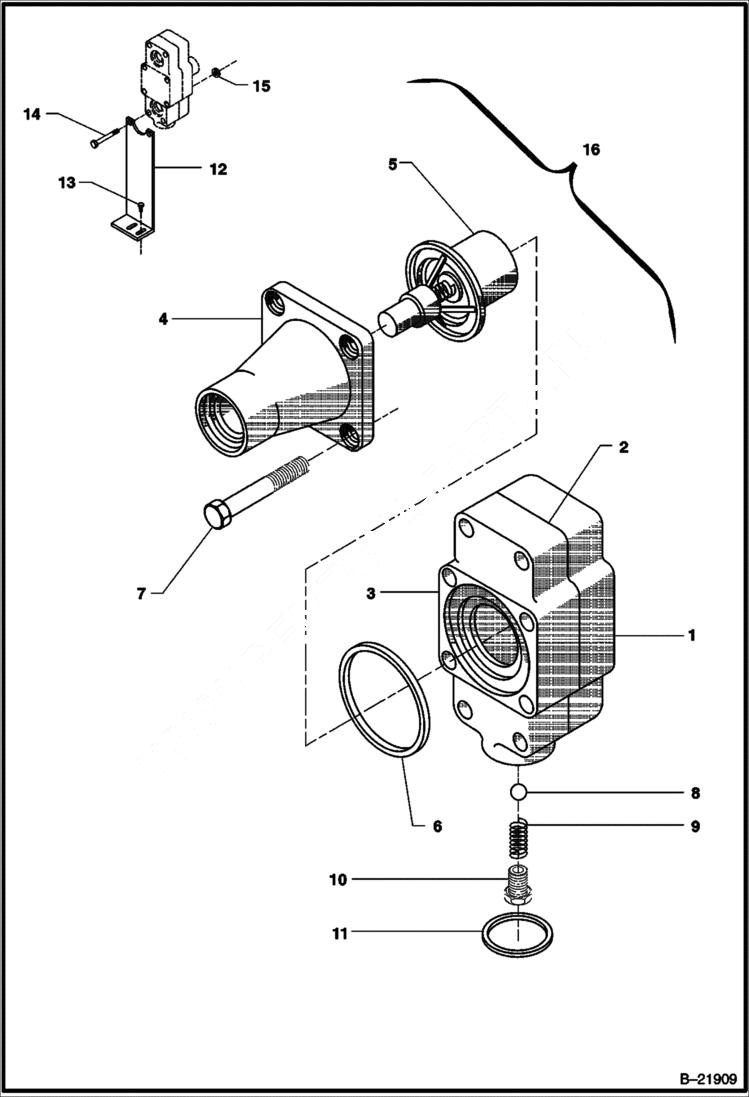

Запчасти Bobcat BAP185 OIL TEMP BYPASS VALVE MAIN FRAME

1

IR36776714

BODY

2

IR35584242

GASKET

3

IR36788289

BODY

4

IR36765832

COVER

5

IR36782019

ELEMENT

6

IR95022307

O-RING

7

IR36786382

SCREW

8

IR35288448

BALL

9

IR35379940

SPRING

10

IR36788164

PLUG

11

IR36788172

SEAL

12

IR36880755

BRACKET

13

IR35279025

SCREW Tapping M08-1.25 X 20

14

IR36884187

SCREW Hex M08-1.25 X 20

15

IR36881886

NUT Hex Flange M08

16

IR54411665

OIL TEMP VALVE Oil Temp. By-pass - Incl. Refs. 1-15 - Was IR36884179 - A
