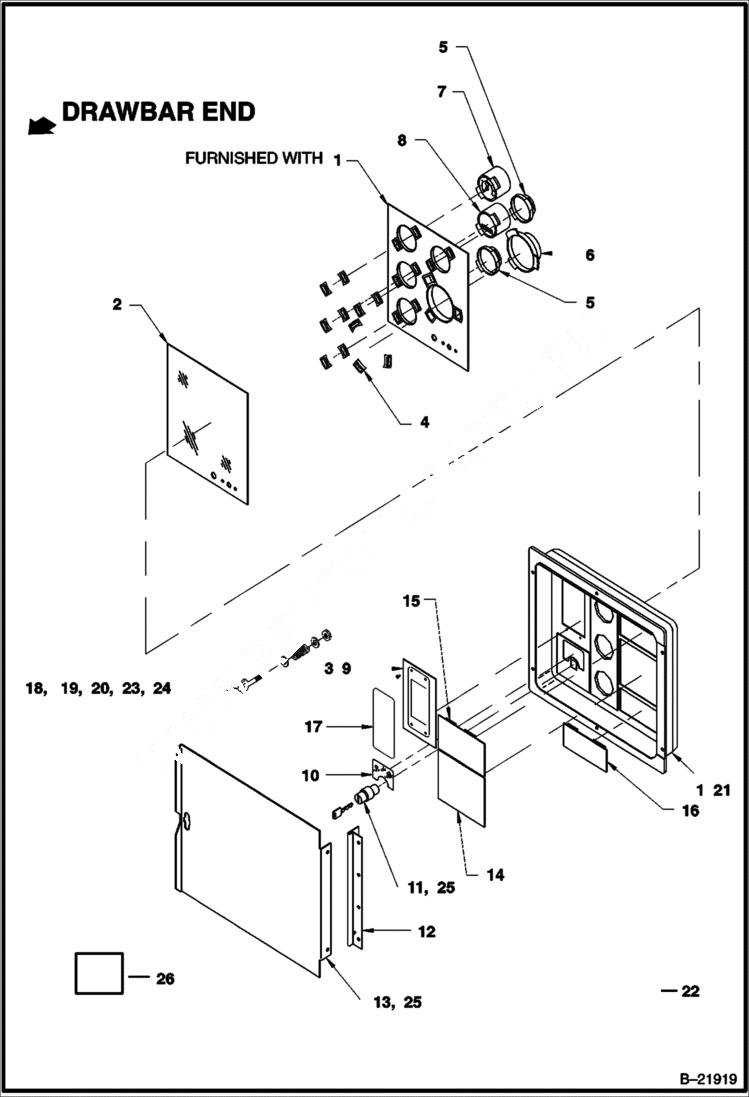

Запчасти Bobcat BAP185 INST/CONT PNL ASSEMBLY MAIN FRAME

1

IR36884492

FRAME Recessed (Assembly)

2

IR35390368

PANEL Acrylic - W/Ref. 1

3

IR35390400

SCREW Flat PH #6 x 3/8

4

IR36880730

CLIP Gauge Retaining - W/Ref. 1

5

IR35390319

CAP 2'' Gauge

6

IR35390301

CAP 3.38'' Gauge

7

IR36879898

GAUGE 150 PSI Pressure

8

IR36879880

HOURMETER

9

IR35390343

COVER Warning Module

10

IR36879971

DECAL Switch

11

IR36884211

SWITCH Ignition

12

IR22107478

HINGE, SPRING, CNTRL PNL Control Panel - Was IR36890085 - A

13

IR36879922

DOOR Instrument Panel

13

IR54523618

DOOR Instrument Panel (Galvenneal)

14

IR35390293

COVER 3.38'' Bezel

15

IR35390285

COVER 2.06'' Bezel

16

IR35390327

COVER Switch Panel

17

IR36882173

LABEL Blank Warning Module

18

IR35607829

EYEBOLT

19

IR95935029

WASHER Flat

20

IR36772028

WASHER Plastic

21

IR36920486

RIVET 3/16 SS

22

IR36877587

RIVET

23

IR35607837

SPRING

24

IR95923298

NUT Hex 1/4-20

25

IR36884229

KEY

26

IR36880557

PANEL ASSY W/ Refs. 1 -11 & 14 - 17
