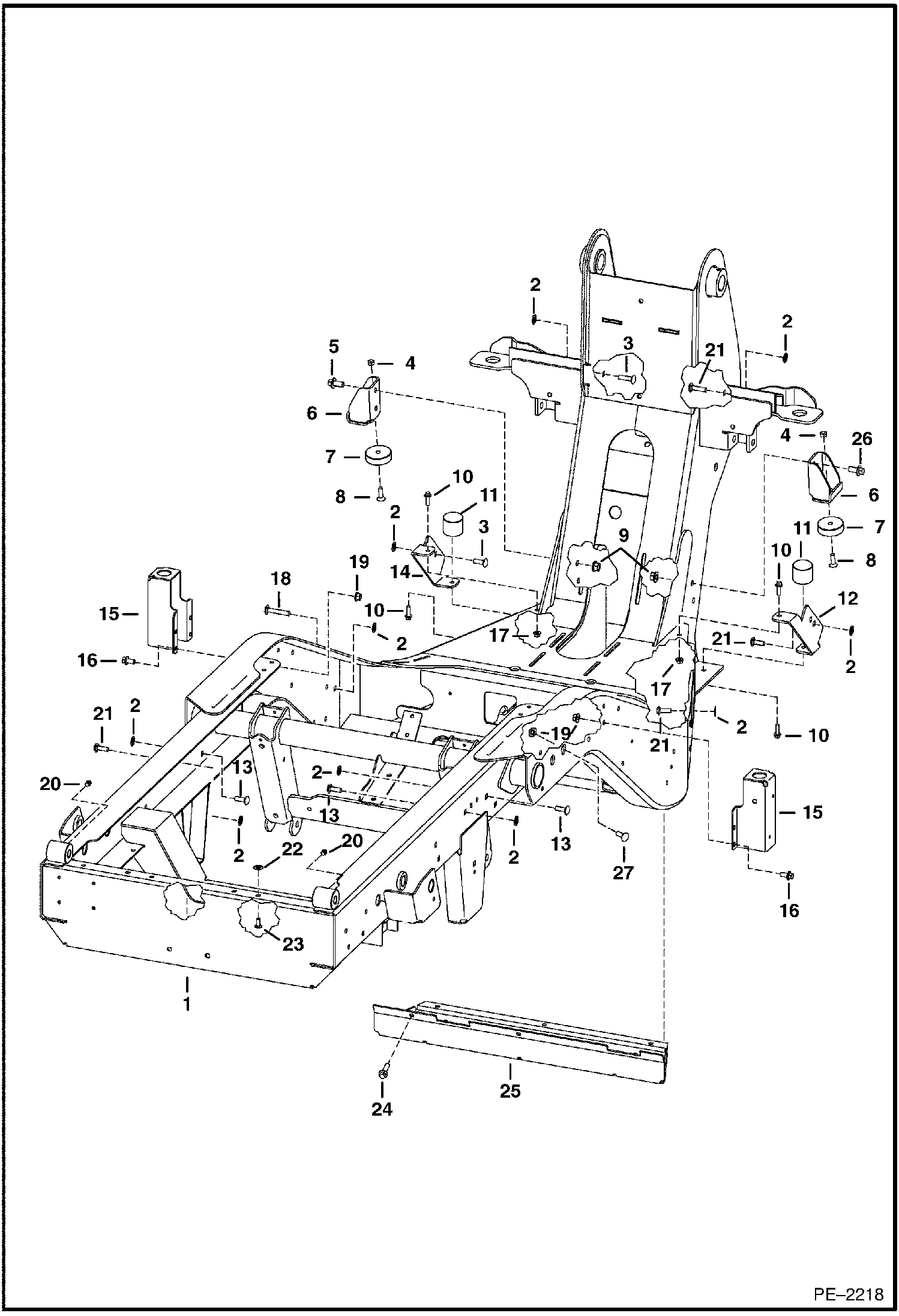

Запчасти Bobcat 5600 MAIN FRAME MAIN FRAME

1

7100046

MAIN FRAME

1

6681573

BUSHING bonded - weld in - rear shackle

2

6674264

RETAINER NUT

3

28CM1040

BOLT

4

85D6

NUT, 5 Was 87D000006B - A

5

29CM1225

BOLT

6

6813498

BRACKET axle stop

7

6814010

STOP axle

8

9G620

BOLT 5

9

51DM12

NUT

10

29CM825

BOLT

11

6814701

STOP

12

BRACKET NLA - hose - Order 7105268 - Was 7100039 - A

12

7105268

BRACKET hose

13

28CM1030

BOLT

14

BRACKET NLA - Order 7105267 & 7105272 - Was 7100040 - A

14

7105267

BRACKET

15

6812789

MOUNT

16

29CM1020

BOLT

17

43DM8

NUT

18

28CM1060

BOLT

19

43DM10

NUT

20

12H15

FITTING, GREASE 5 Was 10H000025B - B

21

28CM1020

BOLT

22

6675859

RETAINER

23

28CM820

BOLT

24

26GM10020

BOLT

25

6813348

COVER hose

26

29CM1245

SCREW

27

28CM1050

BOLT
