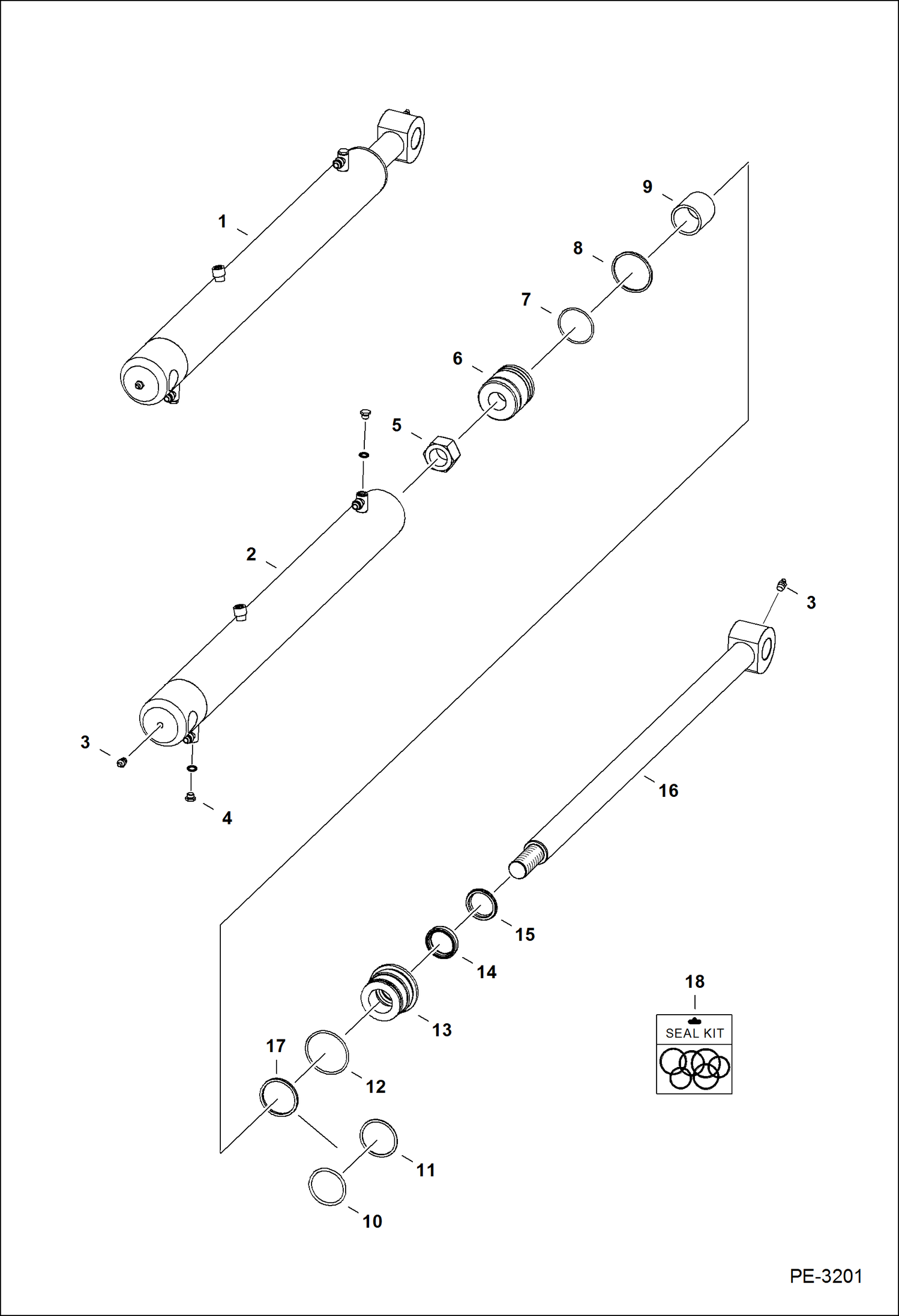

Запчасти Bobcat 5600 LIFT CYLINDER HYDRAULIC SYSTEM

1

7120076

CYL ASSY Ref. 2-16

2

7120077

TUBE ASSY W/Ref. 3 & 4

3

10H25

FITTING, GREASE 5

4

6812170

PLUG

5

6810539

NUT

6

7121353

PISTON

7

25K30202

O RING 10 Was 54K30202 - A

8

1522534

SEAL PISTON

9

6539645

SPACER

10

25K40208

O RING 10 Was 54K40208 - A

11

73K228

BACK-UP RING

12

82K230

O-RING

13

6806124

HEAD

14

6667326

SEAL ROD

15

6690707

WIPER, ROD CYL

16

7140543

SHAFT

17

7008778

SEAL, QUAD

18

7135559

SEAL KIT Ref. 5, 7, 8, 12, 14, 15, & 17
