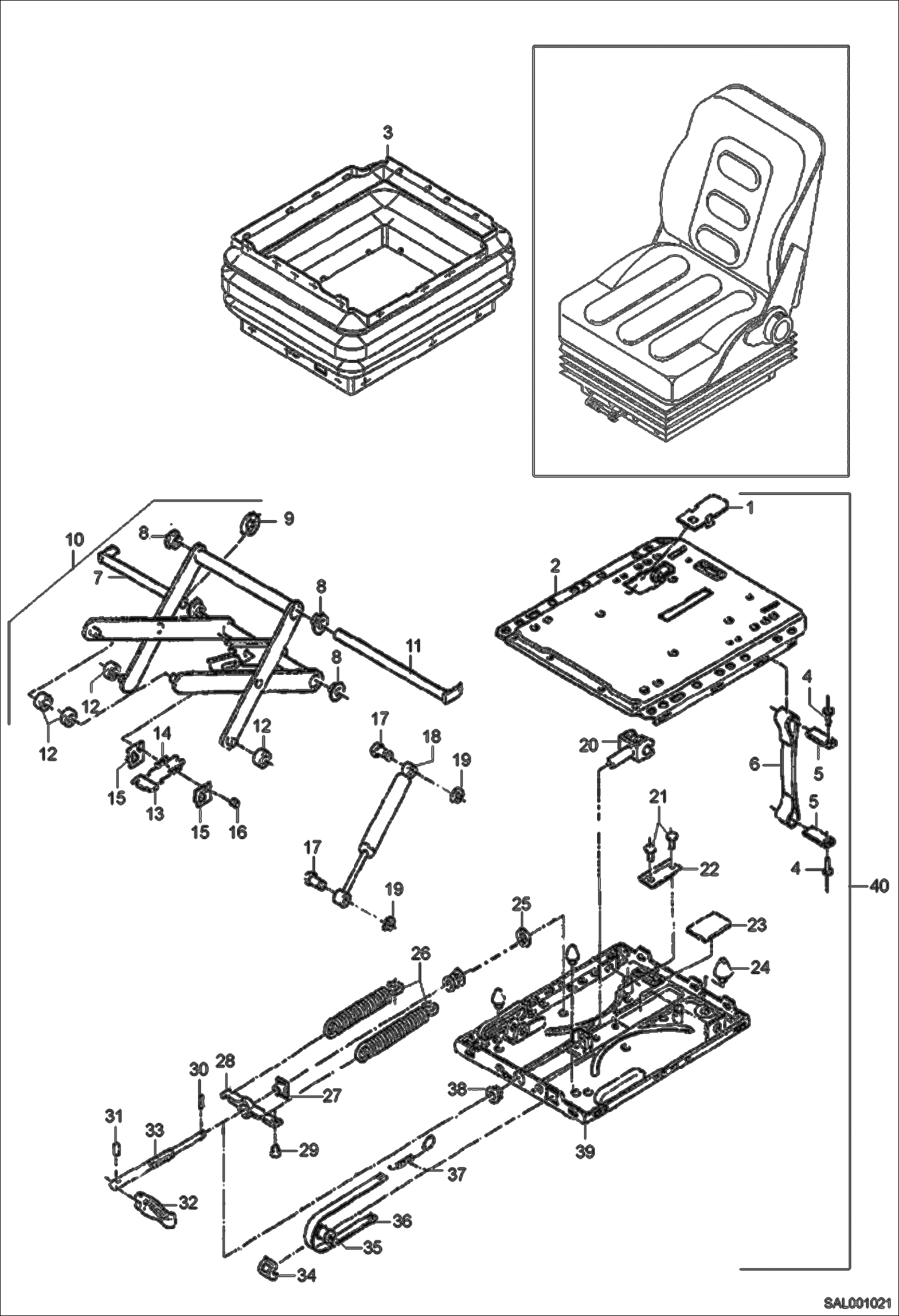

Запчасти Bobcat AL275 SEAT - SUSPENSION Canopy MAIN FRAME

1

5305670115

COVER

2

5305670196

SEAT PAN W/Ref. 1, 4-5

3

5305670197

BELLOW

4

5305670116

RIVET

5

5305670117

BRACKET

6

5305670118

BELT

7

5305661645

PIN

8

5305655444

BUSHING

9

5305639674

CIRCLIP 5,0

10

5305670072

ROCKER ARM W/Ref. 7, 9, 11-16

11

5305670010

PIN

12

5305655433

BUSHING

13

5305670015

PLATE

14

5305655439

SPRING

15

5305670017

LOCKING PLATE

16

5305670016

PIN

17

5305639675

PIN

18

5305670004

GAS-FILLED DAMPER W/Ref. 9, 11

19

5305639674

CIRCLIP 5,0

20

5305670088

FORK CPL

21

5305670120

RIVET 4,0X10

22

5305670121

PLATE

23

5305670185

RUBBER PLATE

24

5305670123

BUFFER SET

25

5305670087

WASHER

26

5305655443

SPRING

27

5305670085

NUT M 12

28

5305670124

SPRING HOLDER

29

5305670128

PLUG

30

5305670090

PIN 3X16

31

5305670091

PIN 4X28

32

5305670084

LEVER W/Ref. 31

33

5305661646

ADJUSTING SPINDLE W/Ref. 26-27, 30, 32, 38

34

5305670125

GUIDE

35

5305659708

ROLLER

36

5305670126

WEIGHT INDICATOR

37

5305655448

SPRING

38

5305670089

RING

39

5305670187

OPERATOR SEAT - BOT W/Ref, 20, 22-26, 28-29, 33, 37

40

5305670250

SEAT SUSPENSION
