AXLE, TIRES 36 km/h Fast Travel Version

Запчасти Bobcat AL275 AXLE, TIRES 36 km/h Fast Travel Version DRIVE SYSTEM

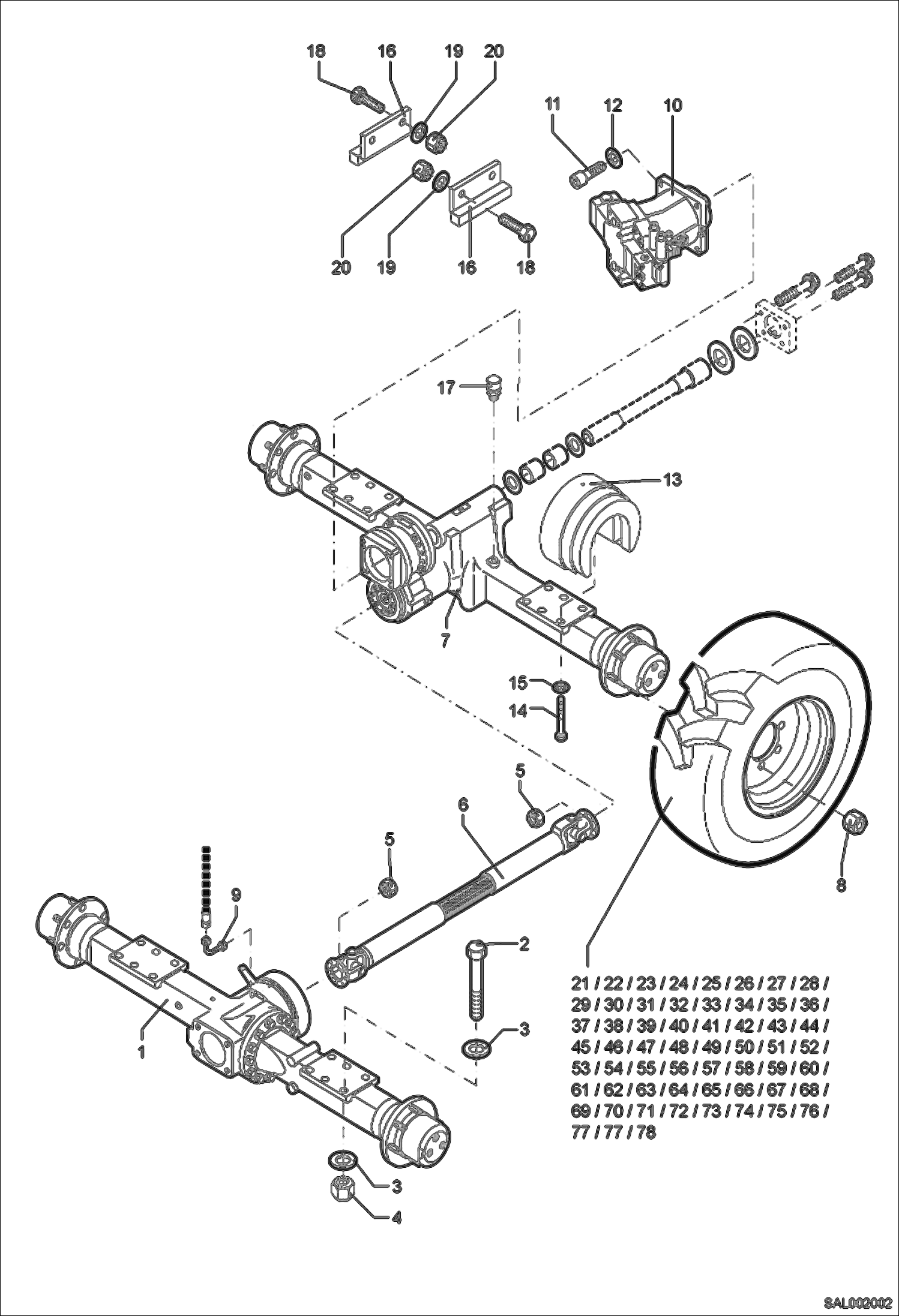

Схема запчастей Bobcat AL275 - AXLE, TIRES 36 km/h Fast Travel Version DRIVE SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5904661656

AXLE 5904661656

2

1007707553

BOLT M 20X90

3

1343707069

WASHER 21X44X8

4

1212251018

NUT M 20

5

1214907013

NUT M 10

6

5200659228

CARDAN SHAFT

7

5904661676

AXLE 5904661676

8

1270707617

NUT M 20X1,5

9

5904660751

BRAKE LINE

10

5364664180

HYDR. MOTOR

11

1045707230

BOLT M 12X40

12

1290707022

WASHER

13

0451219002

REAR AXLE WEIGHT

14

1008707630

BOLT M 12X50

15

1290707022

WASHER

16

6460611002

OSCILLATING STOP

17

6460611002

OSCILLATING STOP

18

1007707830

BOLT M 12X60

19

1343707061

WASHER

20

1212251014

NUT M 12

21

6451290000

WHEEL W/Ref. 22-24

22

5153658418

TIRE

23

5307656024

RIM

24

5153632954

VALVE

25

6460793000

WHEEL W/Ref. 26-28

26

5153638750

TIRE

27

5307610700

RIM

28

5153643505

VALVE

29

6460793500

WHEEL W/Ref. 30-32

30

5153661120

TIRE

31

5307610700

RIM

32

5153643505

VALVE

33

6460794000

WHEEL W/Ref. 34-36

34

5153628250

TIRE 15.5/55R18MPTPG7 134E 14PRTL

35

5307656024

RIM

36

5153643505

VALVE

37

6460794500

WHEEL W/Ref. 38-40

38

5153658375

TIRE

39

5307610700

RIM

40

5153643505

VALVE

41

6460795000

WHEEL W/Ref. 42-44

42

5153621950

TIRE

43

5307656024

RIM

44

5153643505

VALVE

45

6460795500

WHEEL W/Ref. 46-48

46

5153632100

TIRE

47

5307656024

RIM

48

5153643505

VALVE

49

6460796000

WHEEL W/Ref. 50-52

50

5153661180

TIRE

51

5307656024

RIM

52

5153643505

VALVE

53

6460796500

WHEEL W/Ref. 54-56

54

5153658385

TIRE

55

5307656024

RIM

56

5153643505

VALVE

57

6460797000

WHEEL W/Ref. 58-60

58

5153661137

TIRE

59

5307656024

RIM

60

5153661138

HOSE

61

6460797500

WHEEL W/Ref. 62-64

62

5153661145

TIRE

63

5307656024

RIM

64

5153643505

VALVE

65

6460798000

WHEEL W/Ref. 66-68

66

5153661300

RIM

67

5307656024

RIM

68

5153643505

VALVE

69

6451298500

WHEEL W/Ref. 70-72

70

5153665016

TIRE

71

5307656024

RIM

72

5153643505

VALVE

73

5153658431

TIRE MICHELIN 280/80 R18 XMCL AK7888

74

5307610700

RIM AK7888

75

5153643505

VALVE AK7888

76

5153658406

TIRE MICHELIN 340/80 R18 AK7888

77

5307656024

RIM AK7888

78

5153643505

VALVE AK7888
